Condition: New
UPS (rack-mountable / external) - AC 120 V - 1800 Watt - 1920 VA - RS-232 USB - output connectors: 10 - 4U - Canada United States - black

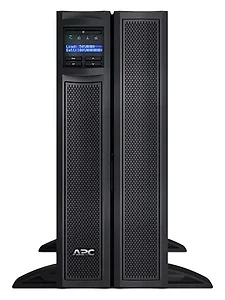

The APC Smart-UPS X 2000VA RT 100/127V is a line-interactive uninterruptible power supply designed for IT environments requiring reliable power backup. This unit provides 1800 Watts / 1920 VA of power, protecting connected equipment from power fluctuations and outages. It features a sine wave output, suitable for sensitive electronics, and offers a transfer time of 2-4 ms. The UPS includes ten output connectors, comprising six NEMA 5-15R, three NEMA 5-20R, and one NEMA L5-20R, accommodating various equipment types. Input power is supplied via a NEMA 5-20P connection with a 2.44-meter cord. The SMX2000LV supports rack-mountable or external deployment, occupying 4U of rack space. It is equipped with a maintenance-free sealed lead-acid battery, offering a typical recharge time of 3 hours. Communication and management are facilitated through SmartSlot, RS-232, and USB ports, alongside an LCD status and control console. This UPS is intended for businesses in Canada and the United States seeking to maintain operational continuity for critical IT hardware during power disturbances.
Output
Output Power Capacity :1800 Watts / 1920 VA
Max Configurable Power :1800 Watts / 1920 VA
Nominal Output Voltage :120V
Output Voltage Distortion :Less than 5%
Output Frequency (sync to mains) :50/60Hz +/- 3 Hz
Topology :Line Interactive
Waveform Type:Sine wave
Output Connections :
(6) NEMA 5-15R
(3) NEMA 5-20R
(1) NEMA L5-20R Input
Nominal Input Voltage :120V
Input Frequency :50/60 Hz +/- 3 Hz (auto s
ensing)
Input Connections :NEMA 5-20P
Cord Length :2.44 meters
Input voltage range for main operations :70 - 153V
Input voltage adjustable range for mains operation :75 - 154V
Transfer Time :2-4 ms Batteries and Runtime
Battery Type :Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time :3 hour(s)
Replacement Battery :APCRBC143
RBC Quantity :1
Extended Run Options :APC Smart-UPS X 2000VA Rack/Tower LCD 100-127V Communications and Management
Interface Port(s) :SmartSlot
Available SmartSlot Interface Quantity :1
Control panel :LED status display with On Line : On Battery : Replace Battery and Overload indicators, Multi-function LCD status and control console
Audible Alarm :Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO) :Yes Surge Protection and Filtering
Surge energy rating :540 Joules
Filtering :Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 Conformance
Regulatory Approvals :BSMI, CSA, EN 50091-2, EN 55022 Class A, FCC Part 15 Class A, NOM, TUV, UL 1778, VCCI Class A
Sustainable Offer Status
RoHS :Compliant
REACH :REACH: Contains No SVHCs Item Dimension (L"xW"xH"):
24.94 x 23.06 x 13.00
Weight:
105 lb
Warranty Information:
3 years repair or replace (excluding battery) and 2 year for battery, optional on-site warranties available, optional extended warranties available
The UPS offers a total of ten output connections. These include six NEMA 5-15R outlets, three NEMA 5-20R outlets, and one NEMA L5-20R outlet.
This UPS is designed for rack-mountable or external deployment. When rack-mounted, it occupies 4U of rack space.
The typical recharge time for the maintenance-free sealed Lead-Acid battery in this UPS is 3 hours.
Yes, the unit provides surge protection with a rating of 540 Joules. It also features full-time multi-pole noise filtering and meets UL 1449 standards.
SMX2000LV - Apc - Schneider Electric SMART UPS X 2000VA RT 100/127V
