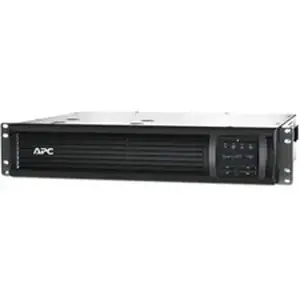

Apc - Schneider Electric SMT750R2X122 APC by Schneider Electric Smart-UPS 750VA LCD RM 2U 120V with L5-15P - 2U Rack-mou

Output
Output power capacity
500Watts / 750VA
Max Configurable Power (Watts)
500Watts / 750VA
Nominal Output Voltage
120V
Output Voltage Distortion
Less than 5% at full load
Output Frequency (sync to mains)
57 - 63 Hz for 60 Hz nominal
Topology
Line Interactive
Waveform type
Sine wave
Output Connections
(6) NEMA 5-15R (Battery Backup)
Transfer Time
2ms typical
Input
Nominal Input Voltage
120V
Input frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
NEMA L5-15P
Cord Length
8ft (2.44meters)
Input voltage range for main operations
82 - 144V
Input voltage adjustable range for mains operation
75 - 154V
Number of Power Cords
1
Batteries Runtime
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
3hour(s)
Replacement Battery
APCRBC133
Expected Battery Life (years)
4 - 6
RBC Quantity
1
Runtime
View Runtime Graph
View Runtime Chart
Efficiency
View Efficiency Graph
Communications Management
Interface Port(s)
SmartSlot, USB
Control panel
Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)
Optional
Available SmartSlot Interface Quantity
1
Surge Protection and Filtering
Surge energy rating
459Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Color
Black
Environmental
Operating Temperature
32 - 104 oC (0 - 40 oC)
Operating Relative Humidity
0 - 95 %
Operating Elevation
0-10000ft (0-3000meters)
Storage Temperature
-15 - 45 oC
Storage Relative Humidity
0 - 95 %
Storage Elevation
0-50000ft (0-15000meters)
Audible noise at 1 meter from surface of unit
42.0dBA
Online thermal dissipation
46.0BTU/hr
Conformance
Approvals
CSA, FCC Part 15 Class A, UL 1449, UL 1778
Equipment protection policy
Lifetime : 150000
Sustainable Offer Status
RoHS
Compliant
REACH
REACH: Contains No SVHCs
PEP
Available in Documentation tab
EOLI
Available in Documentation tab
Item Dimension ( L inchxW inchxH inch)
23 x 10 x 22 Weight
46.70 lb Warranty Information
3 years repair or replace (excluding battery) and 2 year for battery
