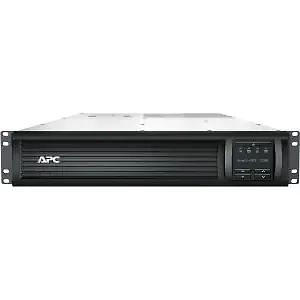

APC Smart-UPS 2200VA LCD RM 2U - UPS (rack-mountable) - AC 120 V - 1980 Watt - 2200 VA - USB - output connectors: 8 - 2U - black
The APC Smart-UPS 2200VA LCD RM 2U is a line-interactive uninterruptible power supply designed for IT environments requiring reliable power protection. This rack-mountable unit provides 1980 Watts / 2200 VA of power, operating at an AC 120 V input. It is suitable for businesses that need to safeguard critical equipment from power fluctuations, surges, and outages, ensuring continuous operation and data integrity. The UPS features a sine wave output, a typical transfer time of 4ms, and includes 8 output connectors. Management is facilitated via a USB interface and a multi-function LCD status and control console. The SMT2200R2X106 model helps maintain uptime for servers, networking devices, and other sensitive electronics by providing backup power and regulating input voltage within an 82-143V range, with an adjustable range of 75-154V.
Output Max Configurable Power (Watts)
1.98kWatts / 2.2kVA Output Voltage Distortion
Less than 5% Output Frequency (sync to mains)
50/60Hz +/- 3 Hz Topology
Line Interactive Waveform type
Sine wave Transfer Time
4ms typical : 8ms maximum Input
Input frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input voltage range for main operations
82 - 143V
Input voltage adjustable range for mains operation
75 - 154V
Number of Power Cords
1 Batteries and Runtime Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof Typical recharge time
3hour(s) Replacement Battery
RBC43 Expected Battery Life (years)
3 - 5 RBC Quantity
1 Battery Volt-Amp-Hour Capacity
494 Communications and Management Interface Port(s)
USB Control panel
LED status display with On Line : On Battery : Replace Battery and Overload indicators, Multi-function LCD status and control console Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm Emergency Power Off (EPO)
Yes
The UPS provides a sine wave output, which is suitable for sensitive electronic equipment. It has a maximum configurable power of 1980 Watts / 2200 VA.
This UPS includes 8 output connectors, allowing for connection of multiple devices. It is designed for rack-mountable installation in a 2U form factor.
The typical recharge time for the maintenance-free sealed Lead-Acid battery is 3 hours. The expected battery life is between 3 to 5 years.
The UPS features a USB interface for communication and management. It also includes a multi-function LCD status and control console for local monitoring and configuration.
SMT2200R2X106 - Apc - Schneider Electric APC SMART-UPS 2200VA LCD RM- 2U - LINE-INTERACTIVE - 120 V - 1980WATT - NEMA L5
