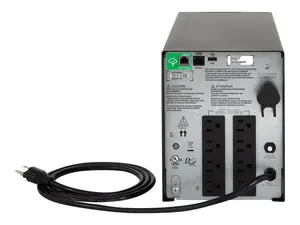

Brookhaven Development Group L SMC1500C APC SMART-UPS 1500VA TWR 120V W/SC 1 YEAR

Output
Output power capacity
900Watts / 1.44kVA
Max Configurable Power (Watts)
900Watts / 1.44kVA
Nominal Output Voltage
120V
Output Voltage Distortion
Less than 5%
Output Frequency (sync to mains)
50/60Hz +/- 3 Hz
Other Output Voltages
110, 127
Topology
Line Interactive
Waveform type
Sine wave
Output Connections
(8) NEMA 5-15R (Battery Backup)
Transfer Time
6ms typical : 10ms maximum
Input
Nominal Input Voltage
120V
Input frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
NEMA 5-15P
Cord Length
6ft (1,83meters)
Input voltage range for main operations
93 - 130V
Input voltage adjustable range for mains operation
85 - 136V
Number of Power Cords
1
Other Input Voltages
110, 127
Batteries and Runtime
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
3hour(s)
Replacement Battery
CURK6X
Expected Battery Life (years)
3 - 5
RBC Quantity
1
Communications and Management
Interface Port(s)
USB
Control panel
Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)
--
Surge Protection and Filtering
Surge energy rating
680Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Color
Black
Environmental
Operating Temperature
32 - 104oF (0 - 40oC)
Operating Relative Humidity
0 - 95 %
Operating Elevation
0-10000ft (0-3000meters)
Storage Temperature
-15 - 45oC
Storage Relative Humidity
0 - 95 %
Storage Elevation
0-50000ft (0-15000meters)
Audible noise at 1 meter from surface of unit
45.0dBA
Online thermal dissipation
225.0BTU/hr
Conformance
Approvals
CSA, CSA C22.2 No. 107.1, FCC Part 15 Class A, ICES-003, UL 1778
Equipment protection policy
Lifetime : 150000 USD
Sustainable Offer Status
RoHS
Compliant
REACH
REACH: Contains No SVHCs
Proposition 65 Warning
Available in Documentation tab
Item Dimension (L"xW"xH")
24 x 15 x 13
Weight
50.00 LB
Warranty Information
2 years repair or replace
