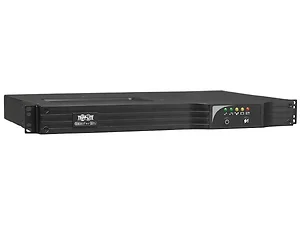

SMART1000RM1U - Tripp Lite UPS Smart 1000VA 800W Rackmount AVR 120V Pure Sine Wave USB DB9 SNMP 1URM - UPS - 800 Watt -

Protects connected mission-critical equipment against damage, downtime and data loss due to blackouts, brownouts, power surges and line noise.

• UPC Code: 037332118820
• UPS Type: Line-Interactive
• Input Phase: Single-Phase
• Rated input current (Maximum Load): 9A
• Nominal Input Voltage(s) Supported: 120V AC
• UPS Input Connection Type: 5-15P
• Input Circuit Breakers: 15A
• Recommended Electrical Service: 15A 120V
• Input Cord Length (ft.): 10
• Output Capacity (VA): 1000
• Output Capacity (kVA): 1
• Output Capacity (Watts): 800
• Output Capacity (kW): 0.8
• Power Factor: 0.8
• Nominal Voltage Details: 120v nominal output in battery mode
• Frequency Compatibility: 60 Hz
• Output Voltage Regulation (Line Mode): -21%, +8%
• Output Voltage Regulation (Battery Mode): +/- 5%
• Load Management Receptacles: Two switchable single-outlet 5-15R load banks
• Output AC Waveform (AC Mode): Sine wave
• Output AC Waveform (Battery Mode): Pure Sine wave
• Nominal Output Voltage(s) Supported: 110V; 115V; 120V
• Output Receptacles: (6) 5-15R
• Individually Controllable Load Banks: Yes
• Battery Type: Valve Regulated Lead Acid (VRLA)
• Runtime Full Load (min.): 4 min. (800W)
• Runtime Half Load (min.): 14 min. (400W)
• DC System Voltage (VDC): 24
• Battery Recharge Rate (Included Batteries): 4.5 hours from 10% to 90% (typical, full load discharge)
• Battery Access: Front panel battery access door
• Internal UPS Replacement Battery Cartridge: RBC69-1U
• Battery Replacement Description: Hot-swappable, user replaceable batteries
• Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 147
• Overvoltage Correction: Input voltages between 128 and 147 are reduced by 12%
• Undervoltage Correction: Input voltages between 83 and 107 are boosted by 14%
• Switches: 2 Switches control off/on power status and alarm-cancel/self-test operation
• Alarm Cancel Operation: Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
• Audible Alarm: Audible alarm indicates power-failure, overload and low-battery conditions
• LED Indicators: 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
• UPS AC Suppression Joule Rating: 450
• EMI / RFI AC Noise Suppression: Yes
• AC Suppression Response Time: Instantaneous
• Primary Form Factor: Rackmount; Vertical
• Rack Height: 1U
• Cooling Method: Fan
• Included Mounting Accessory Description: Included mounting brackets provide front-rail installation in 2 or 4 post racks; For additional stability in 4 post racks, consider optional 4 post mounting accessories 4POSTRAILKIT1U & 4POSTRAILKITWM
• Installation Form Factors Supported with Included Accessories: 2 post 19 inch rackmount; 2 post front mount; 4 post 19 inch rackmount
• Installation Form Factors Supported with Optional Accessories: Vertical Mount Enclosures ( SRWF5U36 , SRWF5U , SRWF10UMOD )
• Minimum Required Rack Depth (inches): 20
• Optional Mounting Accessory Notes: Optional 4POSTRAILKITWM enables installation in 4-port short-depth racks from 14.5 to 23.5 inches (368 to 597mm); Optional 4POSTRAILKIT1U enables installation in 4-post full-depth racks from 20.5 to 36 inches (521 to 914mm)
• Primary UPS Depth (mm): 425
• Primary UPS Height (mm): 44
• Primary UPS Width (mm): 445
• Shipping Dimensions (hwd / in.): 5.30 x 21.30 x 22.90
• Shipping Weight (lbs.): 34.75
• UPS Housing Material: Steel
• UPS Power Module Dimensions (hwd, in.): 1.75 x 17.5 x 16.75
• UPS Power Module Weight (kg): 14.51
• UPS Power Module Weight (lbs.): 32
• Unit Weight (lbs.): 32.0000
• Operating Temperature Range: 32r to 104rF (0r to 40rC)
• Storage Temperature Range: 5r to 122rF (-15r to 50rC)
• Relative Humidity: 0 to 95%, non-condensing
• AC Mode BTU / Hr. (Full Load): 39
• AC Mode Efficiency Rating (100% Load): 99%
• Audible Noise: 45 dBA maximum, front side 1m
• Network Management Cards: SNMPWEBCARD; TLNETCARD ; WEBCARDLX
• Network Monitoring Port Description: Supports detailed monitoring of UPS and site power conditions
• PowerAlert Software: For local monitoring via the UPSrs built-in communications ports, download PowerAlert software at https://tripplite.eaton.com/products/power-alert
• Communications Cable: USB and DB9 cabling included
• WatchDog Compatibility: Supports Watchdog application, OS and hard-reboot restart options for remote applications
• Network Management Card Description: Network management card optional
• Communications Interface: DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface; USB
• Transfer Time: 5 milliseconds AC to DC; 1 millisecond DC to AC
• Low Voltage Transfer to Battery Power (Setpoint): 83
• High Voltage Transfer to Battery Power (Setpoint): 147
• Cold Start (Startup in Battery Mode During a Power Failure): Cold-start operation supported
• High Availability UPS Features: Auto Probe Monitoring and Reboot (requires WEBCARDLX); Automatic Voltage Regulation (AVR); Hot swappable batteries; Remote management; Surge/noise protection
• Green Energy-Saving Features: Greater than 95% efficiency - GREEN UPS; Individually controllable load banks
• Grounding Details: Back panel grounding lug
• UPS Applications: Large Network; High-End Desktop/Small Network; Retail/Point of Sale; Hospitality
• Product Certifications: CSA (Canada); NOM (Mexico); UL 1778
• Product Compliance: RoHS; FCC Part 15 Class A (USA)
• Product Warranty Period (Worldwide): 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
• Connected Equipment Insurance (U.S., Canada & Puerto Rico): $250,000 Ultimate Lifetime Insurance
