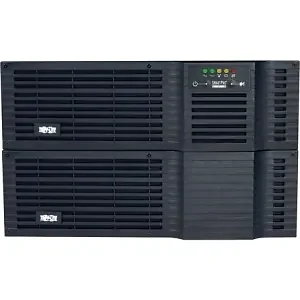

Tripp Lite SM5000RT3UTAA UPS, SmartPro 5000VA, 108V and 120V, 4000W, 6U, AVR, 10 x 5-15R Outlets, USB, Serial

OUTPUT
Output Volt Amp Capacity (VA):5000
Output kVA Capacity (kVA):5
Output Watt Capacity (Watts):4000
Output kW Capacity (kW):4
Power Factor:0.8
Nominal Output Voltage(s) Supported:120V 208V
Frequency Compatibility:60 Hz
Output Voltage Regulation (Line Mode):208 and 120V (-10%, +20%)
Output Voltage Regulation (Battery Mode):+/- 5% UPS Output Receptacles:10 5-15R outlet(s) 2 5-15/20R outlet(s) 1 L14-30R outlet(s) 1 L6-30R outlet(s)
Load Management Receptacles:Eight switchable single-outlet 5-15R load banks
Output Circuit Breakers:15A branch rated (x3) - 2 breakers support 5 5-15R outlets each, one breaker supports 2 5-20R outlets, L6-30R and L14-30R outlets are unbreakered
Output AC Waveform (AC Mode):Sine wave
Output AC Waveform (Battery Mode):Pure Sine wave INPUT
Nominal Input Voltage(s) Supported:208V AC
UPS Input Connection Type:L6-30P
Input Circuit Breakers:30A double-pole
UPS Input Cord Length (ft.):10
UPS Input Cord Length (m):3
Recommended Electrical Service:30A 208V
Input Cord Length (ft.):10
Input Cord Length (m):3
Input Phase:Single-Phase BATTERY
Full Load Runtime (min.):16 min. (4000w)
Half Load Runtime (min.):38 min. (2000w)
DC System Voltage (VDC):48
Battery Recharge Rate (Included Batteries):3 hours
Battery Replacement Description:Hot-swappable, user replaceable batteries VOLTAGE REGULATION
Voltage Regulation Description:Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 151 to 282
Overvoltage Correction:Input voltages between 240V and 282 are reduced by 12%
Undervoltage Correction:Input voltages between 180V and 199 are boosted by 12%
Severe Undervoltage Correction:Input voltages between 151V and 179 are boosted by 24% LEDS ALARMS and SWITCHES
LED Indicators:5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
Audible Alarm:Audible alarm indicates power-failure, overload and low-battery conditions Alarm Cancel Operation:Power-fail alarm can be silenced using alarm-cancel switch once silenced, alarm will re-sound to indicate low-battery status
Switches:2 Switches control off/on power status and alarm-cancel/self-test operation SURGE / NOISE SUPPRESSION
UPS AC Suppression Joule Rating:1020
UPS AC Suppression Response Time:Instantaneous
EMI / RFI AC Noise Suppression:Yes COMMUNICATIONS
Communications Interface:USB DB9 Serial Contact closure
Network Monitoring Port Description:Supports detailed monitoring of UPS and site power conditions 2 USB ports, 1 DB9 serial and 1 DB9 contact closure port (4 total) PowerAlert Software:Included
Communications Cable:USB and DB9 cabling included
WatchDog Compatibility:Supports Watchdog application, OS and hard-reboot restart options for remote applications LINE / BATTERY TRANSFER
Transfer Time:2-4 milliseconds
Low Voltage Transfer to Battery Power (Setpoint):151
High Voltage Transfer to Battery Power (Setpoint):282 SPECIAL FEATURES
Grounding Lug:Back panel grounding lug
Cold Start (Startup in Battery Mode During a Power Failure):Cold-start operation supported
High Availability UPS Features:Hot swappable batteries
Green Energy-Saving Features:Individually controllable load banks COMMUNICATIONS
Communications Interface:USB DB9 Serial Contact closure
Network Monitoring Port Description:Supports detailed monitoring of UPS and site power conditions 2 USB ports, 1 DB9 serial and 1 DB9 contact closure port (4 total)
PowerAlert Software:Included
Communications Cable:USB and DB9 cabling included
WatchDog Compatibility:Supports Watchdog application, OS and hard-reboot restart options for remote applications LINE / BATTERY TRANSFER
Transfer Time:2-4 milliseconds
Low Voltage Transfer to Battery Power (Setpoint):151
High Voltage Transfer to Battery Power (Setpoint):282 SPECIAL FEATURES
Grounding Lug:Back panel grounding lug
Cold Start (Startup in Battery Mode During a Power Failure):Cold-start operation supported
High Availability UPS Features:Hot swappable batteries
Green Energy-Saving Features:Individually controllable load banks Cooling Method
Fans

UPS Housing Material
Steel Item Dimension (L"xW"xH"):
31.5 x 23 x 22.8

Weight:
320 lb

Warranty Information:
2-year limited warranty
