1 Available
Condition: New

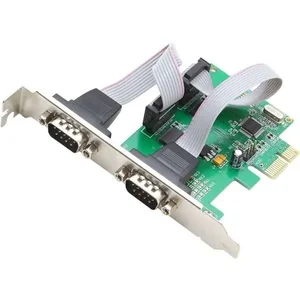

The SYBAUSA SI-PEX15037 is a PCI-e 2-port serial DB9 card designed to add two RS232 compatible serial ports to a host system. This component is suitable for IT professionals and businesses requiring legacy serial connectivity for industrial control systems, point-of-sale devices, or specialized peripherals that rely on RS232 communication. It addresses the challenge of integrating older serial-based hardware with modern systems that often lack built-in serial ports. The card utilizes a WCH CH382 chipset and is fully compliant with PCI-e Base Specification, Revision 1.0a, supporting PCI-e Power Management. Each serial port is a 16c450/550/Extended 550 compatible UART, offering bi-directional speeds from 50bps to 16Mbps and supporting various serial formats and flow control methods. It includes both a low-profile and a full bracket for installation flexibility.
1.Fully Compliant with PCI-e Base Specification, Revision 1.0a
2.PCI-e Multi Function Peripheral Controller with x1 Lane Interface
3.Support for D1, D2, D3hot and D3cold
4.Utilizes 100-Mhz Differential PCI-e Common Reference Clock
5.Supports PCI-e Power Management
6.Serial Port:
I.2 16c450/550/Extended 550 Compatible UARTs
II.Supports RS232 Modes
III.Bi-directional Speeds from 50bps to 16Mbps/Port
IV.Full Serial Modem Control V.Supports Hardware, Software Flow Control
VI.5, 6, 7, 8 bit Serial Format Support
VII.Support MODEM Modem Signals CTS, DSR, RI, DCD, the DTR, RTS, Convert RS232 Level
VIII.Even, Odd, None, Space and Mark Parity Supported IX.Custom BAUD Rates Supported with External Clock or by Programming Internal PLL
X.On Chip 256 Byte Depth FIFOs in Transmit, Receive Path of Each Serial Port
XI.Support Remote Wakeup and Power management Features XII.Serial Port Transceiver Shutdown Support
XIII.Support Slow IrDA on all Serial Ports Software Requirement
Windows 8
Windows 7
Vista
Windows XP
Windows ME
Windows 98SE
Server 2003
Server 2000 (32bit only)
Linux Kernel 2.4 and 2.6
Mac 10.4 and Above Package Includes
2 Serial Ports PCI-e Controller Card
Low Profile Bracket for 1 COM Port
Full Bracket for 2 COM Ports
User Manual
Driver Mini CD Item Dimension (L"xW"xH"):
7 x 5.5 x 1.5
Weight:
0.44 lb
Warranty Information:
3 years
This card supports a range of operating systems including Windows 8, 7, Vista, XP, ME, 98SE, Server 2003, Server 2000 (32bit only), Linux Kernel 2.4 and 2.6, and Mac 10.4 and above.
The package includes the 2 Serial Ports PCI-e Controller Card, a low-profile bracket for one COM port, a full bracket for two COM ports, a user manual, and a driver mini CD.
The card supports RS232 modes with two 16c450/550/Extended 550 compatible UARTs. It offers bi-directional speeds from 50bps to 16Mbps per port and supports hardware and software flow control.
Yes, the card supports custom baud rates. These can be configured with an external clock or by programming the internal PLL.
SI-PEX15037 - Sybausa PCIE 2X PORT SERIAL DB9 CARD, WCH CH382
