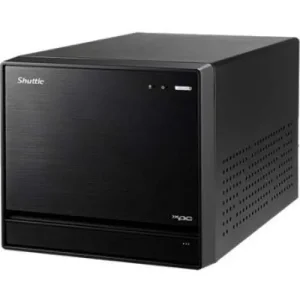

SH370R8 - Shuttle Computers BAREBONE PC INTEL H370

PROCESSOR
Supports Intel 8th and 9th generation 95W Core i3/i5/i7/i9, Pentium, and Celeron LGA 1151v2 processors MEMORY
DDR4 2400/2666 MHz, Supports dual channel up to 64GB (16GB x 4) VIDEO GRAPHICS
Intel HD Graphics 630, Supports DirectX 12 VIDEO OUTPUT
HDMI + DisplayPort x 2, Supports triple independent displays, Supports 4K playback AUDIO
Realtek ALC662, 5.1 channel HD audio ETHERNET
Intel i211
10/100/1000 MB/s operation
Supports Wake on LAN function
Supports Teaming function STORAGE INTERFACE
SATA 6 GB/s ONBOARD CONNECTORS
(2) 4 pin fan connector
(4) SATA 6.0 connectors
(1) ATX main power (2x10)
(1) ATX 12V power (2x2)
(1) Low pin count header
(1) RS232 header
(1) Front USB 2.0 header
(1) Front USB 3.1 header
(1) Front audio header
(1) 2x5 pin USB header FRONT PANEL
(1) Power Button
(1) Power LED
(1) HDD LED
(2) USB 3.1 Gen 1 port
(1) External microphone jack 1/8"
(1) Headphone out BACK PANEL
(1) HDMI 2.0
(2) DisplayPort
(2) USB 2.0
(2) USB 3.1 Gen 1
(4) USB 3.1 Gen 2
(2) LAN ports
(1) Audio line-in
(1) Audio line-out
(1) Microphone input
(1) Clear CMOS button
(3) Perforation for optional WLAN antennas DRIVE BAYS
(4) 3.5" HDD bay
Supports up to 2.5" HDD x8 if PHD3 HDD rack x4 is used POWER
Input: 100 - 240V AC
Supports 80 PLUS Silver
80 PLUS 500W power supply ACCESSORIES
Quick Guide CPU Thermal Grease SATA cable x 2
Driver DVD Power Cord Screw Package EXPANSION SLOT
(1) PCI-E X16 slot Gen 3.0
(1) PCI-E X4 slot Gen 3.0
(1) M.2 MAX to 2230 Type E key socket
(1) M.2 MAX to 2280 Type M key socket OS SUPPORT
Windows 10 64 bit, Linux Item Dimension (L"xW"xH")
18 x 11 x 10

Weight
15 lbs

Warranty Information
3 Year
