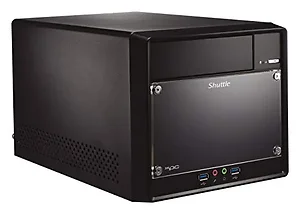

SH310R4 - Shuttle Computers BB INTEL H310 MAX 32GB

FORM FACTOR
Shuttle Form factor PROCESSOR
Support Intel 8th Generation Core^TM i3/i5/i7/i9, Pentium, Celeron95W LGA1151v2 CPU CHIPSET
Intel H310 Express chipset MEMORY
(2)DDR4 2400/2666 MHz support, dual channel up to 32GB (16GBx2) VIDEO OUTPUT
(1)HDMI + (1)DisplayPort(1)+ (1)VGA support Dual independent display 4K playback
Integrated in CPU
AUDIO
Realtek ALC662
5.1 Channel HD audio support
ETHERNET
Intel Chip i219LM
10Mb/s,100Mb/s,1Gb/s operation
Support Wake-on-LAN function
STORAGE INTERFACE
SATA 6.0Gbs interface ONBOARD CONNECTORS
(2) 4 Pin fan connector
(3) SATA 6.0 connector
(1) ATX main power (2x10)
(1) ATX 12V power (2x2)
(1) RS232 header
(1) Low Pin Count header
(1) Front AUDIO header
(1) Front USB3.1 FFC connector header
(1) 1X4 USB 2.0 wafer
FRONT PANEL
(2) USB 3.1 Gen 1 port
(1) Microphone-In
(1) SPK-Out
(1)Power button
(1)Power led
(1)HDD Led
BACK PANEL
(2) USB 3.1 Gen 1 port
(4) USB 2.0 port
(1) DisplayPort
(1) HDMI port
(1) VGA port
(1) LAN
(1)Audio Line in
(1)Audio Line out
(1)Audio MIC in
(1) CMOS clear button
(3)Antenna Hole
DRIVE BAYS
(1) 5.25" ODD bay
(2) 3.5" HDD bay
Support a maximum 2.5" HDD(or SSD)of three, if use accessory PHD3
POWER
80 Plus 300W power supply
Input:100 - 240V AC
Support 80 PLUS Bronze
ACCESSORIES
XPC Multi-Language quick guide
XPC DVD Driver
CPU Thermal Grease
Power cord
Screw package
EXPANSION SLOT
(1) PCI-E X16 Gen3.0 slot
(1) PCI-E X1 Gen2 slot
(1) M.2 2280 type M key socket
(1) M.2 2230 type E key socket
OS SUPPORT
Windows 10 64bit
Linux
Item Dimension (L"xW"xH")
18 x 11 x 10
Weight
15.00 LB
Warranty Information
3 years
