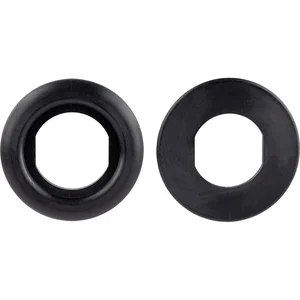

426101-1 - Seadog Sea-Dog 2-Inch Gauge Socket Adapter Mounting Plate

2-Inch Gauge Socket Adapter Mounting Plate

This socket adapter is specially designed to enable the installation of standard 1-1/8-inch gauges and meters into 2-inch instrument dash panel openings. To install, position the face plate on the front of the dashboard, insert the socket or meter from the rear, and secure it in place with the provided washer.

Features:

• Includes D-flats to prevent the gauge from rotating, ensuring a secure fit
• Made from durable, UV-resistant injection-molded nylon

Specifications:

• Face Plate Outer Diameter: 2-3/16 inches
• Face Plate Inner Diameter: 1-3/16 inches
• Face Plate Thickness: 3/16 inches
• Height: 2 inches
• Washer Inner Diameter: 1-1/16 inches
• Washer Thickness: 1/8 inches
• Weight: 0.04 lbs

The Sea-Dog 2-Inch Gauge Socket Adapter Mounting Plate, part number 426101-1, is designed for integrating 1-1/8-inch gauges and meters into existing 2-inch instrument panel openings. This adapter addresses the common issue of mismatched gauge and panel cutout sizes, providing a practical solution for IT hardware integrators or businesses managing specialized equipment with varying gauge requirements. It facilitates a secure and stable installation by allowing smaller gauges to be mounted flush within larger openings. The plate includes D-flats to prevent rotational movement of the installed gauge. Constructed from UV-resistant, injection-molded nylon, this component is suitable for environments where durability and resistance to environmental factors are necessary. Installation involves positioning the face plate on the dashboard front, inserting the gauge from the rear, and securing it with the provided washer, ensuring a finished appearance.
