SKU: XMOZS09BSF |  Mfg. Part: SDGR-FLEX320  | UPC: 859337002412  |
 3 Reviews  |     Share

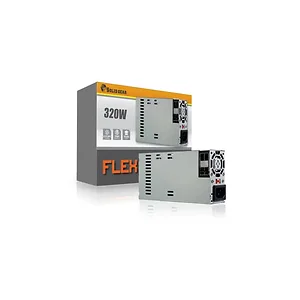

Solid Gear SDGR-FLEX320 320W Mini-ITX / FLEX ATX Power Supply

Out of Stock
Condition: New

$63.05  $85.12
 Free Shipping for this Item

Product Overview

Powerful, Silent, Long Cables, and Easy to install.Solid Gear SDGR-FLEX320 power supply is extremely powerful when you consider it is a flex form factor.It is a great upgrade power supply for any computer using lower wattage flex ATX power supplies that are commonly found in Shuttle and HP slimline systems.Support AMD/Intel CPU Systems, Providing a maximum 320 Watt Output Input voltage100/240 voltInput frequency47/63Inrush current100A max cold startOutput ripplenoise: 1%MTFB, full load>20K hoursEnergystarStand byATX Connector20+4 pin, x1P4-12V 4 pinsingleMolex 4 pinx2SATA 15 pinx2Floppy 4 pinx1AC Input115V/60Hz to 230V/ 50HzItem Dimension (L"xW"xH")4 x 2 x 6Weight2 lbWarranty Information1 Year

Technical Specifications

Specifications

  • Mfr Part Number: SDGR-FLEX320
  • Features:
    • Mini-ITX/FLEX ATX type
    • Supports Intel & AMD Socket
    • Low ripple and noise
    • Over voltage protection
    • Over power protection
    • 100% hi-pot test
    • Short Circuit protection
    • Thermal overload cut-off protection
    • Stained SECC Steel Material
    • 15" long cables
    • Energy efficiency
  • Maximum Power: 320W
  • Input:
    • Voltage: 100-240V
    • Current: 100A max cold start
    • Frequency Range: 47/63Hz
  • Regulation:
    • Line: +/-1% typical
    • Load: +/- 5% typical
  • Output Ripple: noise - 1%
  • Fan: 1x 40mm Cooling Fan
  • Output: +3.3V @ 11A, +5V @ 14A, +12V @ 17A, -12V @ 0.3A, -5V @ 0.1A, +5Vsb @ 2.0A
  • Connectors: 1x 20+4pin Main Connector, 1x 4pin P4 12V Connector, 2x 15pin SATA Connectors, 2x 4pin Molex Connectors, 1x 4pin Floppy Connector
  • MTBF (Full Load): >20,000 Hours
  • EnergystarStand by: < 1W
  • Dimensions (WxDxH): 3.250 x 6.000 x 1.625 inches
  • Weight: 2.0 lbs

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Solid Gear
  • SDGR-FLEX320
  • B00A8ZZXFE
  • 859337002412
  • New
  • 2 lbs
  • 5 X 5 X 5
  • Feb 19, 2026
  • Jan 09, 2013
Product Identifiers: Brand: Solid Gear • Part #: SDGR-FLEX320 • UPC: 859337002412 • ASIN: B00A8ZZXFE • Category: Monitor Supplies

Solid Gear SDGR-FLEX320 320W Mini-ITX / FLEX ATX Power Supply

Reviews for Solid Gear SDGR-FLEX320

$63.05
