IT procurement since 1997
Business, government & education accounts
Special Order
Ships in 1-2 weeks
Condition: New

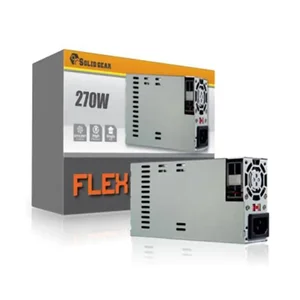

The Solid Gear SDGR-FLEX270 is a 270W power supply unit designed for Mini-ITX and Flex ATX cases. It includes features for system safety and efficiency, such as low ripple, over voltage protection, and thermal overload cut-off.
| Specifications | |
|---|---|
| Maximum Power | 270W |
| Input | |
| Voltage | 100-240V |
| Current | 100A max cold start |
| Frequency Range | 47/63Hz |
| Regulation | |
| Line | +/-1% typical |
| Load | +/- 5% typical |
| Output Ripple | Noise - 1% |
| Fan | 1x 40mm Cooling Fan |
| Output | +3.3V @ 9A, +5V @ 12A, +12V @ 14A, -12V @ 0.3A, -5V @ 0.1A, +5Vsb @ 2.0A |
| Connectors | 1x 20+4pin Main Connector, 1x 4pin 12V Connector, 2x 15pin SATA Connectors, 2x 4pin Molex Connectors, 1x 4pin Floppy Connector |
| MTBF (Full Load) | > 20,000 Hours |
| Energystar Standby | < 1W |
| Dimensions (WxDxH) | 3.250 x 6.000 x 1.625 inch |
| Weight | 2.0 lbs |
