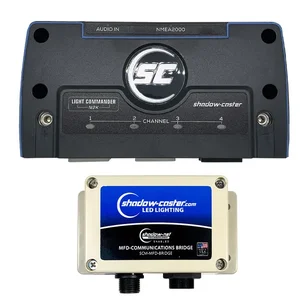

Shadow-caster Led Lighting SCM-LC-N2K-KIT Shadow-Caster Light Commander NMEA 2000 Controller

Shadow-Caster Light Commander NMEA 2000 Controller

The Shadow-Caster Light Commander is a cutting-edge NMEA2000 compliant lighting controller designed for seamless integration with marine lighting systems. Utilizing the latest NMEA2000 lighting control standards, it provides exceptional interoperability and control over onboard lighting systems. This expandable controller can manage up to 6 zones of lighting per module, with native support for 4 zones of RGB or RGBW lights, ensuring a vibrant lighting experience tailored to your preferences.

Key Features:

• NMEA2000 Backbone or MFD Network Port Connectivity
• IP67 Water-resistant housing with waterproof connections
• Integrated communication bridge, eliminating the need for a separate MFD unit
• Deutsch style IP67 rated connections for clean OEM installations
• Digitally fused overcurrent protection circuits rated at 15amps/channel (X4)
• Control up to 6 separate lighting zones; expandable to 18 zones by linking multiple units
• 6 “Instant ON” switch inputs for immediate control without MFD
• Fully supports RGB and RGBW lighting
• Optional wireless control for mobile devices
• Backlit logo and zone indicator LEDs for easy visibility and operation
• Integrated 3.5mm audio port and microphone for music sync features
