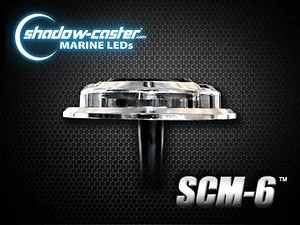

Shadow-caster Led Lighting SCM-6-GW-20 Shadow-Caster SCM-6 LED Underwater Light - 20' Cable

SCM-6 LED Underwater Light - 20' Cable

The Shadow-Caster SCM-6 is a mid-sized underwater light designed to enhance any vessel. With six bright LEDs, this light is available in multiple color options and works seamlessly with our Wireless Controller and Power Distribution Box, ensuring easy installation and use.

High Intensity
The SCM-6 delivers intense optical output, with a unique design that maximizes both light output and LED life, exceeding 40,000 hours.

Robust Design
Designed for durability, this underwater light requires no extra components for installation. Simply connect the 20-foot cable, built for submersible use, and enjoy integrated electronics that withstand vibration and environmental conditions.

Surface Mounted
This lighting solution features a low profile design that does not require alterations to the main hull of your vessel.

Wide Input Voltage Range
Operating with a voltage range of 10 to 30 volts, the SCM-6 is compatible with both 12V and 24V systems, ensuring consistent brightness.

Protection Systems
Featuring surge and reverse polarity protection, the SCM-6 automatically disconnects the input when excessive voltage or reverse polarity occurs, enhancing safety. Thermal protection detects internal temperatures and adjusts energy output to prevent damage.

Specifications:
Size: 7.2" Length x 2.375" Width x 0.5" Height (183 x 60 x 13mm)
Operating Voltage: 10 - 30 Volts DC
Current Draw: 2.1 Amps @ 12 Volts
Internal high efficiency digital switching power supply
Output: 24 Watts of high-efficiency LED light
Lamp Life: 40,000 Hours
Light Spread Angle: 120°
Housing: 316 Stainless Steel with Polycarbonate Lens
Cable Length: 20' (6M)
Warranty: 1-Year
Manufactured in the USA
