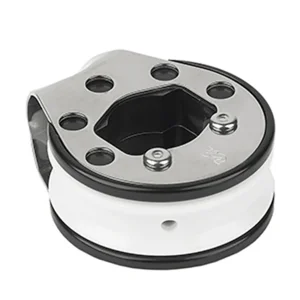

506-44 - Schaefer Marine Schaefer Clear Step Lead Block f/1" Stanchions

Clear Step Lead Block for 1" Stanchions

Unique design leads your furling control line outside of your stanchions for a clean lead aft to the cockpit. Stainless cheeks with Delrin(tm) ball bearing sheave ensure low-friction and high strength. Locks in place with a small set screw accessed through a small hole in the sheave.

Specifications:

• Maximum line diameter 1/2"
• For 1" Stanchions
• Overall Width 3-1/8" (79mm)
• Thickness 1-1/8" (29mm)
• Safe Working load 750 lbs (350kg)
• Weight 5oz (142g)

The Schaefer Clear Step Lead Block, part number 506-44, is designed for managing furling control lines on marine vessels. This component is suitable for integration with 1-inch stanchions, providing a method to route control lines externally, clear of the stanchion array, for a direct path to the cockpit. Its construction features stainless steel cheeks paired with a Delrin ball bearing sheave, which contributes to its low-friction operation and structural integrity. The block is secured in position on the stanchion via a set screw, accessible through an opening in the sheave. This product is intended for marine applications requiring a robust and efficient lead for lines up to 1/2 inch in diameter, with a safe working load of 750 lbs. It addresses the need for organized line management, reducing potential snags and improving operational efficiency for furling systems.
