General Information
Manufacturer:Schneider Electric SA
Manufacturer Part Number:SC620I
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Line:Smart-UPS
Product Series:SC

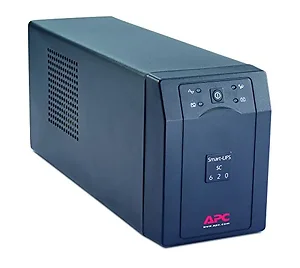

Product Name:Smart-UPS SC 620VA
Marketing Information:The economical UPS to start your business with, is Smart-UPS SC, the perfect protection for the IT resources of your growing business. Manageable and cost effective, APC Smart-UPS SC is designed for use by small and medium companies looking to protect entry level servers and networking equipment, providing both power and data-line protection. Communications are through your server's standard serial port. When you are ready to take your business to the next level you can use the same software environment found on Smart-UPS SC to seamlessly manage other Smart-UPS models, allowing you to grow your IT infrastructure without having to replace your software or retrain your administrators. Built on the same standards as the award winning Smart-UPS UPS.
Product Type:Line-interactive UPS
Technical Information
Plug/Connector Type:IEC 320-C14
Receptacle Type:IEC 60320 C13
Receptacle Detail:
- 3 x IEC 60320 C13
- 2 x IEC 60320 C13
- 1
Dataline Protection:RJ-45
Power Description
Load Capacity:620 VA/390 W
Input Voltage:220 V AC
Output Voltage:230 V AC
Waveform Type:Stepped Sine Wave
Surge Energy Rating:320 J
Management
Alarm:
- On Battery
- Low Battery
- Configurable Delay
Battery Management:Intelligent Battery Management
Controls/Indicators
Status Indicators:
- On Line
- On Battery
- Replace Battery
- Overload
Interfaces/Ports
Serial Port:Yes
Battery Information
Battery Characteristics:Maintenance-free
Battery Chemistry:Lead Acid
Backup/Run Time (Full Load):5.50 Minute
Backup/Run Time (Half Load):15.70 Minute
Hot Swappable:Yes
Environmental Conditions
Maximum Operating Temperature:113°F (45°C)
Thermal Dissipation:20.51 W
Physical Characteristics
Product Color:Gray
Height:7"
Width:5"
Depth:15"
Form Factor:Tower
Weight (Approximate):27 lb
Miscellaneous
Package Contents:
Smart-UPS SC 620VA CD with softwareSmart UPS signalling RS-232 cableUser manualAdditional Information:
- Automatic self-test
- Automatic restart of loads after UPS shutdown
- Battery-protected and surge-only outlets
- Power conditioning
- Predictive failure notification
Certifications & Standards:
- UL 1449
- CE
- EN 50091-1
- EN 50091-2
- GOST
- IEC 60950
- IRAM
- PCBC
- VCCI
- VDE
Environmentally Friendly:Yes
Warranty
Limited Warranty:2 Year
