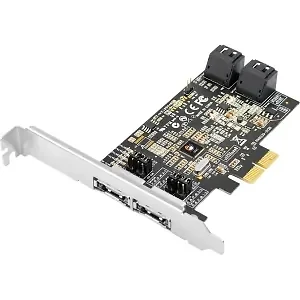

SC-SA0R11-S1 - Siig Controller Card SC-SA0R11-S1 SATA 6Gb s 4Port PCI Express Dual Profile Brown Box

SIIGs DP SATA 6Gb/s 4-Port Hybrid PCIe is a high performance, cost-effective SATA host controller designed to enable SSD performance at less than 1/3 the cost. It is embedded with the latest breakthrough HyperDuo technology to work flawlessly with the leading 6Gb/s HDDs and SSDs. It enhances system performance by significantly reducing system boot-up time while allowing data to be stored on the high capacity SATA HDDs. With the built-in fully-automated HyperDuo technology, this Hybrid PCIe SATA controller can help customers benefit from the high performance of SSD acceleration and high capacity of HDD data storage.

1.Compliant with Serial ATA specification, Revision 3.0

2.Compliant with PCI Express Base specification, Revision 2.0
3.Supports 6Gb/s data transfer rate

4.Supports 48-bit LBA and verified to work with up to 4TB drives
Chipset:
Marvell 88SE9230

Input Interface:
2-lane PCI Express Gen2

Output Interface:
SATA
Connector:
4x 7-pin, SATA
2x 7-pin, eSATA

Color:
Black PCB

SATA data cable:
Length: 19.5" (0.5 m)
Certifications/Standards:
FCC, CE, RoHS

Country of origin:
China
Requirements
Desktop PC with an available x4, x8 or x16 PCIe slot
Windows 8 (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit) / Server 2003 and 2008 (32-/64-bit) / Server 2008 R2
Package Contents
DP SATA 6Gb/s 4-Port Hybrid PCIe
Spare low profile bracket
SATA data cable (2)
Driver CD
Users manual
Item Dimension (L"xW"xH"):
2 X 8.75 X 6.75

Weight:
1 lb

Warranty Information:
5 Years
