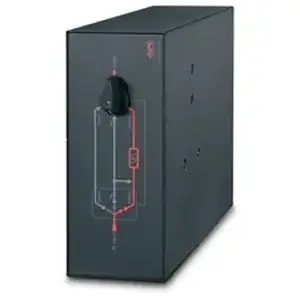

Apc - Schneider Electric SBP10KRMT4U APC 100A Service Bypass Panel - 200/208/240V Hardwire

Special Order
Ships in 1-2 weeks
Condition: New

$2,791.98  $3,769.17

AUTHORIZED

Product Overview

The APC 100A Service Bypass Panel is designed for seamless switching between utility and backup sources for high-capacity power management. With a robust hardwire input, it supports nominal voltages of 200V, 208V, and 240V to provide flexibility in electrical configurations. This panel is ideal for critical applications requiring reliable power distribution and overload protection.

Technical Specifications

  • Nominal Output Voltage: 200V, 208V
  • Other Output Voltages: 240V
  • Overload Protection: Yes
  • Maximum Total Current Draw: 100A
  • Output Connections: (3) NEMA L6-20R, (3) NEMA L6-30R (Battery Backup)
  • Nominal Input Voltage: 200V, 208V
  • Input Frequency: 50/60 Hz
  • Input Connections: Hard Wire 3-wire (2PH + G)
  • Acceptable Input Voltage: 200-240VAC
  • Load Power Factor Range: 0 to 1
  • Load Capacity: 20000VA
  • Maximum Input Current: 100A
  • Maximum Line Current: 100A
  • Operating Temperature: -4 to 122°F (-20 to 50°C)
  • Operating Relative Humidity: 0 - 95%
  • Operating Elevation: 0-15000ft (0-4500meters)
  • Storage Temperature: -40 to 65°C
  • Storage Relative Humidity: 0 - 95%
  • Storage Elevation: 0-50000ft (0-15000meters)
  • Approvals: CSA, EN 60950, GOST, IEC 60950, UL 1778
  • Item Dimensions: 39 x 24 x 12 inches
  • Weight: 70.00 lb
  • Warranty: 2 years (parts only)

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Country of Origin:
  • APC - Schneider Electric
  • SBP10KRMT4U
  • B0000E2PVB
  • 731304212621
  • New
  • 48.1 lbs
  • 39 X 11 X 24
  • Apr 15, 2026
  • Oct 27, 2010
  • China
Product Identifiers: Brand: Apc - Schneider Electric • Part #: SBP10KRMT4U • UPC: 731304212621 • ASIN: B0000E2PVB
