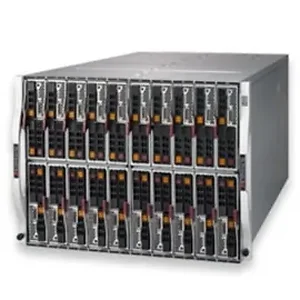

SBI-4129P-T3N - Supermicro System SBI-4129P-T3N TwinBlade LGA3647 10.4GT/s C622 1TB SATA DDR4 PCI Express Brown Box

Processor/Cache
CPU:
- Dual Socket P (LGA 3647)
- Intel Xeon Scalable Processors, Dual UPI up to 10.4GT/s
- Support CPU TDP 70-205W
Cores: Up to 28 Cores with Intel HT Technology System Memory
Memory Capacity:
- 16 DIMM slots
- Up to 2TB Registered ECC LRDIMM/RDIMM
Memory Type:
- 2666/2400/2133MHz ECC DDR4
- Support Apache Pass On-Board Devices
Chipset: Intel C622 chipset
SATA: SATA3 (6Gbps) via Intel C622 RAID 0, 1, 5
Network Controllers: Dual 10G onboard and high speed network options (via 25G/100G EDR/Omni-Path Mezzanine card)
IPMI: Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)
Graphics: Aspeed AST2500 BMC System BIOS
BIOS Type: 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features:
- Plug and Play (PnP)
- PCI 2.2
- ACPI up to 3.0
- USB Keyboard support Available Colors
Black Front Panel
Buttons Power:
- On/Off button
- KVM button
LEDs:
- Power LED
- UID / KVM LED
- Network Activity LED
- Fault LED
Connector: SUV (Serial/USB/Video) and KVM Connector Drive Bays
Hot-swap: 2 Hot-Plug 2.5" NVMe + 1 SATA3 drive bays
M.2: 1 PCI-E x4 M.2 or 4 PCI-E x4 M.2 via Mezzanine card Input / Output
TPM: 1 TPM Header
KVM: 1 Front Connector for SMCI KVM Card RoHS
RoHS Compliant Environmental Spec.
Operating Temperature: 10^oC ^o 35^oC (50^oF to 95^oF)
Non-operating Temperature: -40^oC to 60^oC (-40^oF to 140^oF)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing) Item Dimension (L inchxW inchxH inch)
24 x 2 x 7 Weight
8.60 lb Warranty Information
1 Year
