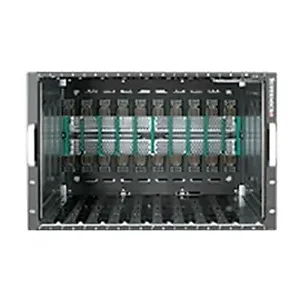

Supermicro Case SBE-710E-R48(3YR) SuperBlade Enclosure 7U chassis with four 1620W Retail
Space Optimization
Housed within a 19" industry-standard rack, SuperBlade? servers reduce server footprint in the data center. Power, cooling and networking devices are aggregated in the rear of the chassis which optimizes the required amount of space.
Up to 10 TwinBlade (20 nodes) can be installed in a 7U chassis. Compared to the 20U of rack space that twenty 1U servers would normally require as individual servers, the SuperBlade provides more than 50% density savings with 120 nodes and 24 switches in a 42U rack..
Cable Reduction
The SuperBlade? server chassis enclosure greatly simplifies the cabling process by aggregating cabling of ten servers at once. Up to 90% of network, power, and KVM cabling required for ten 1U servers are reduced by moving to blade servers in a single chassis. These cabling reductions continue across networking, SAN connectivity, and management controllers.
Reducing the number of cables speeds up the deployment of servers and helps reduce troubleshooting issues by presenting fewer physical connections to the servers.
| Vendor: | Supermicro |
| MPN: | SBE-710E-R48(3YR) |
| UPC: | |
Detail Specifications
Enclosure
SBE-710E
Processor Blade
Up to 10 hot-plug processor blades |
Module Support
Supports both Intel and AMD based blades
LED
Power LED, Fault LED |
InfiniBand Switch
Supports one hot-plug DDR IB switch
Gigabit Ethernet Switch / Pass-Through Module
Supports up to two hot-plug Gigabit Ethernet switches / Pass-Through Modules |
Management Module
Up to two hot-plug management modules providing remote KVM and IPMI 2.0 functionalities
One management module comes standard with each enclosure |
Power Supply
Up to four hot-swap 1620W power supplies, N+1 redundant
Cooling Design
Up to 16 cooling fans |
Item Dimension (L"xW"xH")
40 x 25 x 25
Weight
175 lb
Warranty Information
3 Years |
