| General Information | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | SATSASBP125 |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |

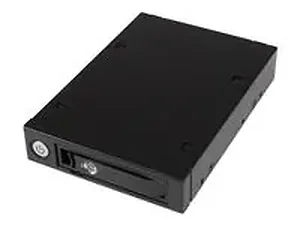

| Product Name | Mobile Rack Backplane for 2.5in SATA/SAS Drive |
| Packaged Quantity | 1 |
| Product Type | Drive Enclosure |
| Technical Information | |
| Number of Hard Drives Supported | 1 |
| Number of Solid State Drive Supported | 1 |
| I/O Expansions | |
| Number of Total Expansion Bays | 1 |
| Number of 2.5" Bays | 1 |
| Network & Communication | |
| Wireless LAN | No |
| Interfaces/Ports | |
| Drive Interface | SATA/600 |
| Host Interface | Serial ATA/600 |
| Physical Characteristics | Product Color: |
| Form Factor | Internal |
| Height | 1" |
| Width | 4" |
| Depth | 5.6" |
| Weight (Approximate) | 15.52 oz |
| Miscellaneous | Package Contents: |
| Environmentally Friendly | Yes |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 2 Year |
Now it's easy to increase the storage capabilities of your server or PC while protecting data integrity. This one-bay mobile rack backplane lets you install and easily remove a 2.5in SAS or SATA HDD or SDD in a 3.5in external expansion bay on your desktop PC or server. It's ideal for system integrators and administrators looking for flexible management of data storage.
The backplane provides an easy, convenient way to install and swap drives between desktops or servers. It supports both SAS and SATA 2.5in drives ranging from 5 to 15mm in height. To maximize the performance of your hard drives, the mobile rack supports SAS II and SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller.
The backplane can be mounted either vertically or horizontally, for error-free tray insertion and maximum compatibility with servers or desktop computers.You can lock the removable steel tray in place, providing an enhanced level of drive protection. The Non-Scratch SATA (NSS) connector provides a high 50,000+ insertion rating, your assurance of long-lasting performance of both the drive and the bay.
