General Information
Manufacturer:StarTech.com
Manufacturer Part Number:SAS8087S4R50
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com

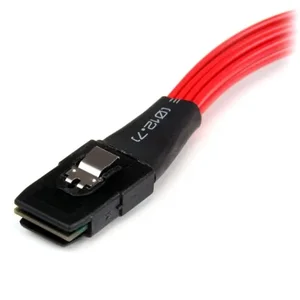

Product Name:50cm SFF-8087 to 4x SATA - Internal Mini SAS to SATA Reverse Cable
Marketing Information:The SAS8087S4R50 SFF-8087 to 4x SATA Reverse cable features one 36-pin plug (SFF-8087), which fans out to four SATA 7-pin receptacles, providing a reliable solution for connecting a Mini SAS backplane to a SAS / SATA RAID controller or motherboard. Designed for long-lasting dependability and reliability, the Mini SAS to SATA cable is backed by StarTech.com's lifetime warranty.
Packaged Quantity:1
Product Type:Data Transfer Cable
Technical Information
Cable Type:SAS/SATA
Cable Characteristic:Fan-out Cable
Cable Length:1.64 ft
Connector Type on First End:SFF-8087 Mini-SAS - Male
Connector on First End Details:1 x 36-pin SFF-8087 Mini-SAS - Male
Connector Type on Second End:SATA 3.0 - Female
Connector on Second End Details:4 x 7-pin SATA 3.0 - Female
Features:
- Reversible
- Locking Latch
- Latching Connector
Conductor:Copper
Device Supported:
- Motherboard
- Storage Equipment
- SAS Controller
- RAID Controller
American Wire Gauge:30 AWG
Data Transfer Rate:6 Gbit/s
Physical Characteristics
Product Color:Red
Weight (Approximate):0.10 lb
Miscellaneous
Environmentally Friendly:Yes
Environmental Certification:
Country of Origin:China
Warranty
Limited Warranty:Lifetime
