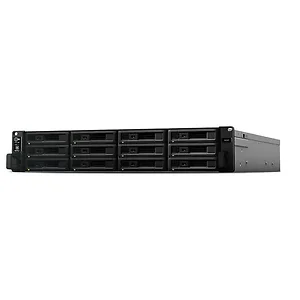

SA3600 - Synology 12 BAY NAS SA3600(DISKLESS)

CPU
CPU Model
Intel Xeon D-1567
CPU Architecture
64-bit
CPU Frequency
12-core 2.1 (base) / 2.7 (turbo) GHz
Hardware Encryption Engine (AES-NI)
Yes
Memory
System Memory
16 GB DDR4 ECC RDIMM
Memory Module Pre-installed
16 GB (16 GB x 1)
Total Memory Slots
4
Memory Expandable up to
128 GB (32 GB x 4)
Notes
Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
Synology reserves the right to replace memory modules with the same or higher frequency based on suppliers product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
Storage
Drive Bays
12
Maximum Drive Bays with Expansion Unit
96 (RX1217sas) / 180 (RX2417sas)
Compatible Drive Type
3.5" SAS HDD
2.5" SAS HDD
2.5" SAS SSD
3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD
Maximum Internal Raw Capacity
192 TB (16 TB drive x 12) (Capacity may vary by RAID types)
Maximum Raw Capacity with Expansion Units
1,536 TB (192 TB + 16 TB drive x 84) (Capacity may vary by RAID types)
Maximum Single Volume Size
200 TB (32 GB RAM required, for RAID 5 or RAID 6 groups only)
108 TB
Hot Swappable Drive
Yes
Notes
"Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
The maximum raw capacity is not limited by the maximum single volume size. Synology NAS models may utilize capacities over the maximum single volume size as long as each volume created is below the limit.
Each internal volume (may consist of multiple drives) is expandble up to 108TB (with memory less than 32GB) or 200TB (with memory equal to or greater than 32GB).
External Ports
RJ-45 1GbE LAN Port
4 (with Link Aggregation / Failover support)
RJ-45 10GbE LAN Port
2 (with Link Aggregation / Failover support)
USB 3.0 Port
2
Expansion Port
1
PCIe
PCIe Expansion
2 x Gen3 x8 slots (x8 link)
Add-In-Card Support
PCIe Network Interface Card
File System
Internal Drives
Btrfs
EXT4
External Drives
Btrfs
EXT4
EXT3
FAT
NTFS
HFS+
exFAT
Notes
exFAT Access is purchased separately in Package Center.
Appearance
Form Factor (RU)
2U
Rack Installation Support
4-post 19" rack (Synology Rail Kit - RKS1317)
Notes
The rail kit is sold separately
Others
System Fan
80 mm x 80 mm x 4 pcs
Fan Speed Mode
Full-Speed Mode
Cool Mode
Quiet Mode
Easy Replacement System Fan
Yes
Power Recovery
Yes
Noise Level
49.8 dB(A)
Scheduled Power On / Off
Yes
Wake on LAN / WAN
Yes
Power Supply Unit / Adapter
500 W
Redundant Power Supply
Yes
AC Input Power Voltage
100 V to 240 V AC
Power Frequency
50/60 Hz, Single Phase
Power Consumption
156.23 W (Access)
72.37 W (HDD Hibernation)
British Thermal Unit
533.08 BTU/hr (Access)
246.94 BTU/hr (HDD Hibernation)
Notes
Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A), Temperature: 24.25-25.75^oC, Humidity: 58.2-61.8%
Temperature
Operating Temperature
0^oC to 35^oC (32^oF to 95^oF)
Storage Temperature
-20^oC to 60^oC (-5^oF to 140^oF)
Relative Humidity
5% to 95% RH
Certification
EAC
VCCI
CCC
RCM
KC
FCC
CE
BSMI
Environment
RoHS Compliant
Packaging Content
Main Unit X 1
Accessory Pack X 1
AC Power Cord X 2
Quick Installation Guide X 1
Optional Accessories
D4RD-2666-16G DDR4 ECC RDIMM
D4RD-2666-32G DDR4 ECC RDIMM
Expansion Unit: RX1217sas X 7
Expansion Unit: RX2417sas X 7
2.5" SATA SSD: SAT5200
M.2 SSD and 10GbE Combo Adapter Card: E10M20-T1
M.2 SSD Adapter Card: M2D20
10GbE Network Interface Card: E10G18-T2
10GbE Network Interface Card: E10G18-T1
10GbE Network Interface Card: E10G17-F2
Synology Rail Kit Sliding - RKS1317
VS360HD
VS960HD
Surveillance Device License Pack
Notes
It is required to use D4RD-2666-16G with identical memory modules of the same capacity and frequency.
DSM Specifications
Storage Management
Maximum Internal Volume Number
256
Maximum iSCSI Target Number
256
Maximum iSCSI LUN
512
iSCSI LUN Clone/Snapshot, Windows ODX
Yes
SSD Read / Write Cache (White Paper)
Yes
SSD TRIM
Yes
RAID Group
Yes
Supported RAID Type
RAID F1
Basic
JBOD
RAID 0
RAID 1
RAID 5
RAID 6
RAID 10
RAID Migration
Basic to RAID 1
Basic to RAID 5
RAID 1 to RAID 5
RAID 5 to RAID 6
Volume Expansion with Larger HDDs
RAID F1
RAID 1
RAID 5
RAID 6
RAID 10
Volume Expansion by Adding a HDD
RAID F1
JBOD
RAID 5
RAID 6
Global Hot Spare Supported RAID Type
RAID F1
RAID 1
RAID 5
RAID 6
RAID 10
File Services
File Protocol
CIFS/AFP/NFS/FTP/WebDAV
Maximum Concurrent CIFS/AFP/FTP Connections
4,000
Maximum Concurrent CIFS/AFP/FTP Connections (with RAM expansion)
10,000
Windows Access Control List (ACL) Integration
Yes
NFS Kerberos Authentication
Yes
Account and Shared Folder
Maximum Local User Accounts
16,000
Maximum Local Groups
512
Maximum Shared Folder
512
Maximum Shared Folder Sync Tasks
32
High Availability
Synology High Availability
Yes
Log Center
Syslog Events per Second
3,000
Virtualization
VMware vSphere 6 with VAAI
Yes
Windows Server 2016
Yes
Citrix Ready
Yes
OpenStack
Yes
