S2600STG - Intel Motherboard S2600STB STP Base Retail

Product Collection
Intel Server Board S2600ST Family Code Name
Products formerly Wolf Pass Number of QPI Links
2 Compatible Product Series
Intel Xeon Scalable Processors Board Form Factor
SSI EEB (12 x 13 in) Chassis Form Factor
Rack or Pedestal Socket
Socket P Integrated Systems Available
No Integrated BMC with IPMI
IPMI 2.0 with OEM extensions Rack-Friendly Board
Yes TDP
205 W Included Items
(1) Intel Server Board S2600STB Embedded Options Available
No Description

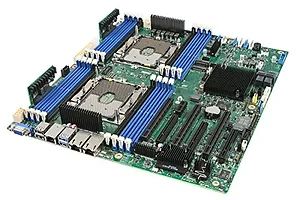

A standard form factor server board supporting two Intel Xeon Scalable Processors, up to 205 W TDP, 16 DIMMs, and Dual 10GBase-T ports. Memory Types
DDR4 ECC RDIMM/LRDIMM 2133/2400/2666 Max number of Memory Channels
12 Max number of DIMMs
16 ECC Memory Supported
Yes Integrated Graphics
No Graphics Output
VGA
