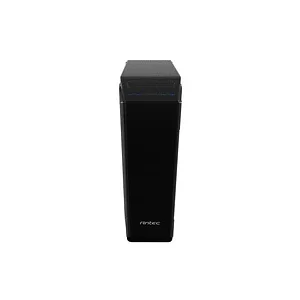

Antec S10 SIGNATURE Case S10 Signature Full Tower 0/(6)/(8x2.5inch) Bays USB Audio Black Extended-ATX

Designed to Inspire

The full tower S10 is the flagship case of the Signature Series by Antec, a new family of chassis characterized by a patent pending internal architecture featuring an innovative Central Air Intake System and easy expandability with a striking, yet refined, exterior design. The exclusive Three Chamber Design separates the enclosure into three thermal zones, providing clear airflow paths and efficient cooling to all of your components quietly. Seven (7) pre-installed fans plus one optional fan mount combine with support for top, center, and rear radiators to showcase the ample cooling options available in the S10. Ten (10) PCI-E slots and fourteen (6 HDD, 8 SSD) tool-less drive bays make building a high-performance system a simple process. Finished with a smooth front bezel and Opposing Brushed Aluminum Doors, the S10 provides performance, security, and style for any computer system
Elite builds start with the right chassis – the S10 Signature Series by Antec.

14 Bay Drives
6 x Quick Release tool-less 3.5inch Bays
8 x Quick Release tool-less 2.5inch Bays

Motherboard Support
Mini ITX / Micro ATX / Standard ATX / XL-ATX/E-ATX (up to 12 x 13)
10 PCI expansion slots

Chamber Dimensions
Hard Disk Drive Chamber: 5.51 in (W) x 7.87 in (D) x 18.11 in (H)
Motherboard Chamber: 14.76 in (W) x 7.08 in (D) x 17.51 in (H)
Power Supply Chamber: 15.15 in (W) x 8.07 in (D) x 4.01 in (H)

Maximum Graphics Card Size
12.5 (317.5 mm)

Maximum CPU Cooler Height
6.5 (165 mm)

Cooling System
2 x 140 mm top exhaust fans (Motherboard Chamber)
3 x 120 mm intake fans (Motherboard Chamber)
1 x 120 mm rear exhaust fan (Motherboard Chamber)
1 x 120 mm exhaust fan (HDD Chamber)
Optional - 1 x 120 intake fan (PSU Chamber)

Side Panels
4 mm thick Anodized, Brushed Finish Aluminum Doors

Water Cooling Support Motherboard Chamber
Top: 240 / 280 mm radiator
Center: 240 / 280 / 360 mm radiator
Rear: 120 mm radiator

Intake Filters
1 x Central Intake
1 x Hard Disk Drive Chamber Intake
1 x Power Supply Chamber Intake

Front I/O Ports
4 x USB 3.0
Power Button
HD Audio In and Out

Item Dimension (L"xW"xH")
26.89 x 13.23 x 27.84

Weight
89.66 lb

Warranty Information
3 Years
