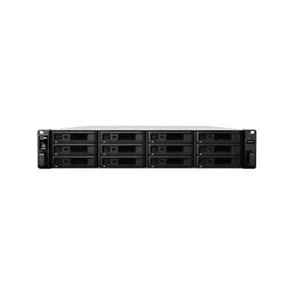

Synology RX1217 Drive Enclosure Rack-mountable - 12 x HDD Supported - 12 x SSD Supported - 12 x Total Bay - 12 x 2.5"/3.5" Bay - Serial ATA/600 - Infiniband - Cooling Fan RX1217 DISKLESS
The Synology RX1217 is a rack-mountable 12-bay drive enclosure designed for businesses requiring scalable storage solutions. This diskless unit supports 12 x 2.5" or 3.5" SATA III/II HDDs and SSDs, offering a maximum internal raw capacity of 120TB (with 10TB HDDs). It features hot-swappable drive bays and integrates with Synology RackStation units via an InfiniBand port, allowing for RAID management through Synology DSM. The RX1217 is suitable for IT environments needing to expand existing Synology NAS storage capacity or implement new high-density storage for data backup, archiving, or surveillance. Its design addresses the need for reliable, expandable storage within a rack infrastructure, providing a dedicated expansion unit without requiring a full NAS system replacement. Power recovery is synchronized with the connected Synology RackStation for consistent operation.
Storage:
Drive Bay(S): 12
Compatible Drive Type:
- 3.5 SATA III / SATA II HDD
- 2.5 SATA III / SATA II HDD
- 2.5 SATA III / SATA II SSD
Maximum Internal Raw Capacity: 120TB (10TB HDD x 12) (Capacity may vary by RAID Types)
Hot Swappable Drive: Yes
RAID Management thought Synology DSM: Yes External Ports
InfiniBand Port: 1 Power
Power Recovery: Synchronized with the Synology RackStation
Power Supply Unit/Adapter: 500W
AC Input Power Voltage: 100v to 240v AC
Power Frequency: 50/60Hz, Single Phase
Power Consumption:
- 68.60 W (Access)
- 27.45 W (HDD Hibernation)British Thermal Unit:
- 234.23 BTU/hr (Access)
- 93.73 BTU/hr (HDD Hibernation) Temperature
Operating Temperature: 5 C to 35 C (40 F to 95 F)
Storage Temperature: -20 C to 60 C (5 F to 140 F)
Relative Humidity: 5% to 95% RH Others
System Fan: 80mmx80mm x 3pcs
Easy Replacement System Fan: Yes
Noise Level: 54.6 dB(A) Certification
FCC Class A
CE Class A
BSMI Class A Environment
RoHS Compliant Optional Accessories
Synology RKS1317 Rail Kit Sliding Package Contents
1 x Main Unit
1 x Accessory Pack
1 x AC Power Cord
1 x Expansion Cable: InfiniBand
1 x Quick Installation Guide Item Dimension (L"xW"xH")
34 x 26 x 10
DIM Weight
64.00 lbs
Warranty Information
5 Years
The RX1217 is compatible with 3.5" SATA III/II HDDs, 2.5" SATA III/II HDDs, and 2.5" SATA III/II SSDs. All 12 drive bays are hot-swappable.
The package includes the main unit, an accessory pack, an AC power cord, an InfiniBand expansion cable, and a Quick Installation Guide. It does not include hard drives.
The Synology RX1217 supports a maximum internal raw capacity of 120TB, based on using 12 x 10TB HDDs. Actual usable capacity may vary depending on the RAID configuration chosen.
No, the Synology RX1217 is a drive enclosure designed to expand the storage capacity of a compatible Synology RackStation. It connects via an InfiniBand port and relies on the RackStation for RAID management and network functionality.
