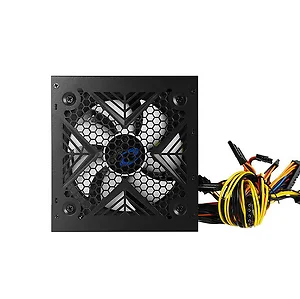

The Raidmax RX-500XT is a 500W ATX12V V2.3 power supply from the XT Series. It features a single +12V output, honeycomb ventilation, and supports Intel's C6/C7 power-saving modes. Multiple connectors are included to support various hardware configurations.
| Specifications | |
|---|---|
| Maximum Power | 500 W |
| Input Voltage | 115 - 230 V AC |
| Input Current | 4/8 A |
| Frequency Range | 50 - 60 Hz |
| Type | ATX12V V2.3 |
| Fan | 1x 120mm Fan |
| Output | +3.3V @ 18A, +5V @ 17A, +12V @ 36A, -12V @ 0.5A, 5VSB @ 2.5A |
| Connectors | 1x 20+4pin Main Connector, 1x 4+4pin CPU Connector, 1x 6+2pin PCI-Express Connector, 1x 6pin PCI-Express Connector, 5x SATA Connectors, 2x 4pin Molex Connectors, 1x Floppy Connector |
| Safety Approval | FCC, CE |
| Dimensions (WxLxH) | 140.0 x 150.0 x 86.0 mm |
