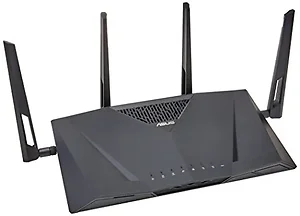

Asus RT-AC3100 11A/B/G/N/AC 2.4G/5G

About this item

• Ultra-fast 802.11ac Wi-Fi router with a combined dual-band data rate of 3167 Mbps for low latency online gaming, smooth 4K streaming and extremely fast file-sharing
• Broadcom NitroQAM technology boosts 5 GHz data rates up to 2167 Mbps and 2.4 GHz up to 1000 Mbps
• Dual-band 4x4 MIMO antenna design with AiRadar universal beamforming for unrivaled wireless signal coverage
• 1.4 GHz dual-core processor improves USB and WAN/LAN speed
• Link aggregation supports close to 2 Gbps wired transmission for more devices to enjoy faster access speed
• Multiple capacity Wi-Fi with revolutionary MU-MIMO technology
• AiProtection with Trend Micro for advanced security

Network Standard
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IPv4, IPv6
Product Segment
AC3100 ultimate AC performance : 1000+2167 Mbps
Coverage
Very large homes
Data Rate
802.11a : 6,9,12,18,24,36,48,54 Mbps
802.11b : 1, 2, 5.5, 11 Mbps
802.11g : 6,9,12,18,24,36,48,54 Mbps
802.11n : up to 600 Mbps
802.11ac : up to 1734 Mbps
1024QAM (2.4GHz) : up to 1000 Mbps
1024QAM (5GHz) : up to2167 Mbps
Antenna
External antenna x 4
Transmit/Receive
MIMO technology
2.4 GHz 4 x 4
5 GHz 4 x 4
Processor
1.4 GHz dual-core processor
Memory
128 MB Flash Wi-Fi Technology
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80 MHz bandwidth
Operating Frequency
2.4 GHz / 5 GHz
Encryption
64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support
Firewall and Access Control
Access controlParental control, Network service filter, URL filter, Port filter
Management
UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, SNMP, NTP Client, DDNS, Port Trigger, Virtual Server, DMZ, System Event Log
WAN Connection Type
Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
Utilities
Router setup wizard Firmware restoration Device discovary printer setup utility
Ports
RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4
USB 2.0 x 1
USB 3.0 x 1
Button
WPS Button, Reset Button, Power Button, Wireless on/off Button, LED on/off Button
LED Indicator
Power x 1
Wi-Fi x 2
WAN x 1
USB x 2
WPS x 1
LAN x 1
Power Supply
AC Input : 110V240V(5060Hz)
DC Output : 19 V with max. 2.37 A current
Item Dimension (L"xW"xH")
16 x 11 x 6
