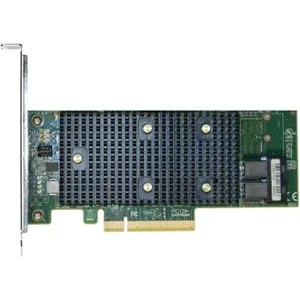

The Intel RAID Adapter RSP3WD080E is designed for use in content and web hosting appliances, security appliances, financial institutions, cloud service providers, and enterprise IT. Its standard, low-profile MD2 form factor is designed for use in both Intel and third-party server products. With eight internal ports, the Intel RAID Adapter RSP3WD080E provides the reliability of hardware RAID at a low price point. The Intel RAID Adapter RSP3WD080E enables NVMe, SAS, and SATA performance and scalability.
Technical Specifications
Board Form Factor Low-Profile MD2 PCIe AIC Supported Devices PCIe/SAS/SATA Supported Operating Systems Microsoft Windows, VMWare, Linux (SLES, RHEL), Solaris, FreeBSD RAID Level Supported 0, 1, 10, 5 JBOD Mode Yes Number of Ports Internal 8 Number of Ports External 0 Number of Devices Supported 63 PCIe Host Interface PCIe x8 Gen3 IO Processor Model SAS3408 Keying PCIe x8 Connector Connector Orientation Vertical Included Items (1) Intel RAID Adapter, (1) low-profile mounting bracket Item Dimension (L"xW"xH") 9 x 4 x 2
Weight 11.64 lbs
Warranty Information 3 Years Standard
Product Details
Manufacturer:
Model Number:
ASIN:
UPC:
Condition:
Weight:
Dimensions:
Updated:
Added:
Intel
RSP3WD080E
B074WQN8CL
735858329170
New
2.25 lbs
6 X 23 X 14
Mar 07, 2026
Aug 16, 2017
Product Identifiers:
Brand: Intel •
Part #: RSP3WD080E • UPC: 735858329170 • ASIN: B074WQN8CL • Category: Disk Controllers/RAID Cards
