Product Overview

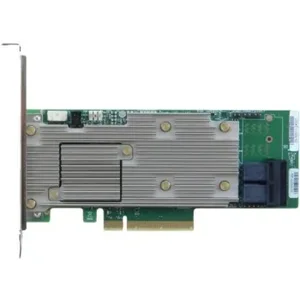

The Intel RAID Adapter RSP3DD080F is designed for use in content and web hosting appliances, security appliances, financial institutions, cloud service providers, and enterprise IT. Its standard, low-profile MD2 form factor is designed for use in both Intel and third-party server products. It supports RAID levels 0/1/10/5/50/6/60 and optional maintenance-free cache backup with 4 GB DDR4. With eight internal ports, the Intel RAID Adapter RSP3DD080F enables NVMe*, SAS, and SATA performance and scalability. It provides high uptime for mass storage, with maximum reliability for high-intensity workloads.
Technical Specifications
Board Form Factor
Low-Profile MD2 PCIe AIC Supported Devices
PCIe/SAS/SATA Supported Operating Systems
Microsoft Windows, VMWare, Linux (SLES, RHEL), Solaris, FreeBSD Compatible Cache Backup Options
AXXRMFBU7 RAID Level Supported
0, 1, 10, 5, 50, 6, 60 JBOD Mode
Yes Number of Ports Internal
8 Number of Ports External
0 Number of Devices Supported
255 Embedded Memory
4GB PCIe Host Interface
PCIe x8 Gen3 IO Processor Model
SAS3508 Keying
PCIe x8 Connector Connector Orientation
Vertical Additional Features
Support for optional Maintenance Free Backup Unit and Premium Feature upgrade keys. Included Items
(1) Intel RAID Adapter, (1) low-profile mounting bracket Item Dimension (L"xW"xH")
9 x 4 x 2
Weight
2.61 lbs
Warranty Information
3 Years Standard
