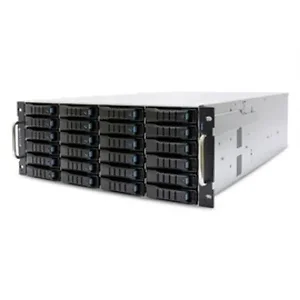

Aic RSC-4ET0-C0PP-SA3E-0C0-B Chassis RSC-4ET0-C0PP-SA3E-0C0-B 4U 24Bay 12Gb/s Expander 1200W 1 RPS Tool Less Retail

RSC-4ET is a T series 4U 24-bay SAS/SATA storage server chassis. With its tool-less 3.5" and 2.5" hard drive carriers, top covers and backplane, the RSC-4ET supports quick installation and easy maintenance. This tool-less design solution also features 3 x hot swap fans designed to minimize rotational vibration and SPGC pre-plated steel with minimal paint, offering a cost-effective solution ideally suited for a broad range of applications.

•  Tool-less design supports quick installation and easy maintenance:
-Tool-less 3.5” & 2.5” drive trays
- Tool-less top covers
- Tool-less backplane
- Tool-less slide rails
•  12Gb/s SAS expander chip on backplane
•  Specially designed hot swap and low power consumption fans minimize rotational vibration and provide superior cooling
•  3.5" drive tray comes with 4 screw holes to adapt to 2.5" drive
•  Two front access USB 3.0 ports
•  Comes with a 80+ Platinum redundant PSU

Industry Standard
EIA-RS310D

Material
Heavy-duty preplated SPGC cold-rolled steel

Color
Front Panel : Black

Cooling
Middle : 3 x 120x25mm PWM hot swap fans

Power Supply
1200W 1+1 redundant PSU 80+ Platinum

Expansion Slots
7 full height

Front Panel
Power on/off
System reset
2 x USB 3.0 port

LED Indicators
Power
LAN
Drive
Alert

System Board
12"(W) x 13"(D) E-ATX/SSI EEB 3.6 compliant MB

Drive Bays
External : 24 x 3.5" hot swap
2 x 2.5" hot swap
Internal : 2 x 2.5"

Backplane
1 x 24-port 12Gb SAS backplane with 36-PHY expander chip and 3 SFF-8643 connectors

Cubic Feet
6.56

Mounting
Standard : 28" tool-less slide rail

Item Dimension (L"xW"xH")
35 x 24 x 15

Weight
81.6 lb

Warranty Information
1 year
