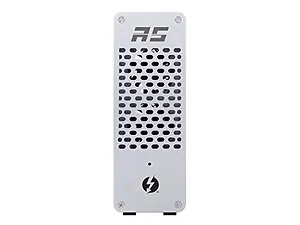

General Information Thunderbolt 3 40Gb/s Ports / Daisy Chain support for up to 6 devices Dual Ultra-Quiet, High-Efficiency Cooling Fans Easily install nearly any full-height/full-length PCIe 3.0 card (Storage I/O, Networking, Video, Sound) Versatile Storage & Connectivity Expansion; NVMe RAID Drives, USB/eSATA/Mini-SAS connectivity Ultra-Compact & Portable Thunderbolt 3 PCIe Expansion Chassis - transform your notebook into a compact media workstation! The RocketStor 6661A allows you to quickly add any PCIe x4, x8 or x16 card to your Thunderbolt 3 capable computing platform; such as media capture, Ethernet, Fibre Channel, or external Storage/RAID controller cards. Like it's processor, The lightweight, small-footprint design is ideal for compact workstations and mobile computing platforms such as iMacs, MacBook's Pros and Razor notebooks. At just 7 inches tall, and less than 3 inches wide, the RocketStor 6661A is small enough to pack into a laptop bag, yet is capable of supporting full-sized PCIe 3.0 add-in cards. Efficient Chassis Design keeps temperatures in check during Heavy Workloads PCIe devices, such as networking, video and hardware RAID cards can generate a great deal of waste heat during heavy I/O; an efficient, reliable, cooling system is an essential component of any PCIe expansion solution. The RocketStor 6661A was designed to accommodate performance intensive applications. The ventilated, all-aluminum chassis and dual cooling fans keep temperatures in check during high-stress workloads. Simple Plug and Play Installation The RocketStor 6661A can be easily added to any Thunderbolt 3 capable Mac & PC platform via a single cable connection. Quick release thumbscrews and a slidable chassis cover make adding or removing PCIe cards a snap!Physical CharacteristicsMaterial: Aluminum - EnclosureForm Factor: PortableHeight: 6.4"Width: 2.3"Depth: 10.1"Weight (Approximate): 5.18 lb
Technical Specifications
Host Ports 2x Thunderbolt TM 3 Ports Daisy Chain Supports Daisy Chain connections of up to six Thunderbolt TMdevices (Note, the Daisy Chain will end if connected to a USB or Display device via USB-C) TB3 Technology Daisy Chain up to 6 devices Bi-directional, dual-protocol (PCI Express and DisplayPort) 8 lanes of DisplayPort 1.2 supports dual 4K displays or one 5K display Power delivery 15W to bus-powered devices Backward compatible to Thunderbolt TM2 devices USB-C ports compatible with existing USB devices via USB-C cable, support up to USB 3.1 10Gb/s speed System Requirements Computer with a USB-C port (Thunderbolt TM 3) Computer with a Thunderbolt 2 port (via Thunderbolt TM 3 to Thunderbolt TM 2 Adapter) Mac OS X 10.8.5 and later Driver embedded into Mac OS X 10.9 and Later No. of PCIe Slots 1-Slot: Electrical - x4 PCIe 3.0 (open end) PCIe Card Length Full-height, Max length 8.2" Enclosure Indicator Power On Supported PCIe Cards Any Thunderbolt TM Aware PCIe cards including Audio, Video Capture, Ethernet, Fibre Channel, Storage/RAID controller cards, and PCIe SSD Chassis Design Features Rugged, Ultra slim aluminum enclosure Dual-Ultra Quiet, high-efficiency Cooling fans Quick release thumbscrews for easy access Power Supply External 60 watts power supply Material Aluminum Power Input AC 100-240V Output DC 12V 5A MTBF (Mean Time Before Failure) 920,585 Hours Compliance Certification FCC, CE, ROHS and REACH Kit Contents 1x RocketStor 6661A Expansion Chasis 1x 40Gb/s Thunderbolt TM 3 cable 1x Power cord 1x Quick Installation Guide Thunderbolt 3 Cables TB3-040G-505 - 0.5M, 40Gb/s TB3-040G-510 - 1M, 40Gb/s TB3-040G-520 - 2M, 40Gb/s TB3-020G-510 - 1M, 20Gb/s TB3-020G-520 - 2M, 20Gb/s Item Dimension (L inchxW inchxH inch) 3 x 7 x 11
