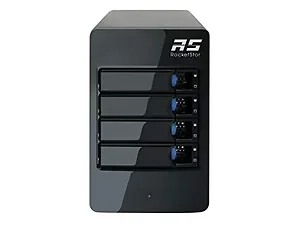

Highpoint RS6314B TB3 4BAY HW RAID ENCLOSURE

Feature Specifications
Port Type
Thunderbolt 2
Onboard Storage processor
RAID-On-Chip Onboard
Onboard Cache Memory
512MB DDR 3 Cache Memory with ECC Protection
Number of Ports
2x Thunderbolt Ports
RAID Level
0, 1, 5, 6, 10 and JBOD
Operating System
Windows 7 and later
Windows Server 2008 and later
macOS X 10.8.5 and later
Driver embedded into macOS X 10.9 and Later
Max.Capacity
Up to 56TB
Number Of drives
Up to 4
Drive Interface
SAS, SATA
Drive Form Factor
3.5" and 2.5"
Material
Brushed aluminum housing Advanced RAID Features
Advanced RAID Features
Configurable RAID Block Size up to 1MB
Flash ROM for Upgradeable Firmware
DV Mode Technology
Storage Health Inspector
Redundant RAID Configurations
Bootable RAID Array
EFI BIOS for Mac Platform
Multiple RAID Partitions supported
Online Array Roaming
Online RAID Level Migration (ORLM)
Online Capacity Expansion (OCE)
RAID Initialization Background/Foreground/Quick
Global Hot Spare Disk support
Automatic and configurable RAID Rebuilding Priority
NVRAM with Write Journaling enhances RAID integrity
Disk Format compatible: 512, 512e, 4Kn
Larger than 2 TB Drive and RAID Array support
Spin down Massive Arrays of Idle Disks support
Native Command Queuing
Write Back and Write Through
Software Compatibility: Time Machine Features
Backup and Restore Storage Monitoring and Management Suite
RAID Management Suites
Browser-Based management tool
Password Secured RAID management Suites
Default no password needed to access WebGUI in Mac
Temperature
Power, Present, Active, Fail, Rebuilding and Identify
SMTP Email Alert Notification
Email Alert Notification
Power Supply
AC INPUT: 100-240V - 5A 50/60Hz DC OUTPUT: 250W
Internal Fan
80x80x25mm, Single Fan
Alarm Buzzer
Buzzer beeping when failed drive or array occurs Operating Environment
Temperature
(operating) 5^oC 45^oC
(non-operating) 40^oC 65^oC
Compliance Certification
CE, FCC, RoHS, REACH, WEEE Kit Contents
1x 4-Bay Tower Enclosure
4x Drive Trays
1x Thunderbolt Cable
1x UL Power Cord
16x 3.5 HDD mounting screws
16x 2.5 SSD mounting screws
1x Quick Installation Guide
1x Thunderbolt 3 USB-C to Thunderbolt Adapter (TB3-LADP-TB2) Item Dimension (L"xW"xH")
13 x 9 x 12

Weight
11 lbs

Warranty Information
2 Years
