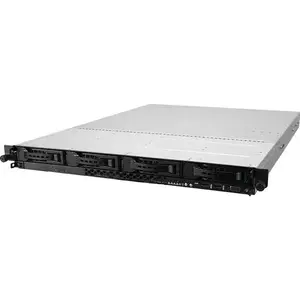

RS500-E9-RS4 - Asus LGA 3647 Intel Xeon C621 16 DI

Processor / System Bus
2 x Socket P (LGA 3647)
1st and 2nd Gen Xeon Scalable Processor Family (205W)
Generation
E9
Core Logic
Intel Lewisburg PCH C621
Memory
Total Slots : 16 (6-channel per CPU, 8 DIMM per CPU)
Capacity : Maximum up to 4096GB LR-DIMM 3DS
Memory Type :
DDR4 2933/2666 RDIMM
DDR4 2933/2666 LRDIMM
DDR4 2666 LR-DIMM 3DS
Memory Size :
64GB, 32GB, 16GB RDIMM
128GB, 64GB, 32GB LRDIMM
128GB, 64GB LR-DIMM 3DS
Expansion Slots
1 x PCIe 3.0 x16 Slot(Gen3 x16 link), FH,HL
1 x PCIe 3.0 x8 Slot(Gen3 x8 link), FH,HL
1 x OCP 2.0 Mezzanine Conn.(Gen3 x16 link)
Storage
SATA Controller :
Intel C621
SATA Controller :
Intel C621
2 x M.2 connector
Optional kits Controller :
ASUS PIKE II 3008 8-port SAS HBA card
ASUS PIKE II 3108 8-port SAS HW RAID card
Drive Bays
4 x 3.5" Hot-swap Storage Bays (Backplane Supports 4 x 3.5" or 2.5" SATA/SAS Devices)
Auxiliary Storage FDD/CD/DVD
Optinal Slim-type DVD Drive
Networking
1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN
Graphic
Aspeed AST2500 with 64MB VRAM
Front I/O Ports
2 x USB 3.0 ports
1 x VGA port
Rear I/O Ports
2 x USB 3.0 ports
1 x VGA port
2 x RJ-45 1GbE LAN ports
1 x RJ-45 Management port
Switch/LED
Rear:
- 1 x Power Switch/LED
- 1 x Q-Code/Port 80 LED
- 1 x Locatation LED
- 1 x Message LED
Front:
- 1 x Power Switch/LED
- 1 x Location Switch/LED
- 1 x Reset Switch
- 1 x Message LED
- 4 x LAN LED (LED1 to 2 for on-board LAN, 3 to 4 for OCP LAN)
OS Support
Windows Server 2016
RedHat Enterprise Linux
SuSE Linux Enterprise Server
CentOS
Ubuntu
VMware
Citrix XenServer
Management Solution
ASUS Control Center
ASMB9-iKVM for KVM-over-IP
Regulatory Compliance
BSMI, CE, FCC(Class A)
Form Factor
1U
Power Supply
1+1 Redundant 770W 80 PLUS Platinum Power Supply
Rating: 100-127/200-240 Vac, 10A/5A, 50-60Hz, Class I
Up to 205W CPU
1+1 Redundant 450W 80 PLUS Gold Power Supply
Rating: 100-127/200-240 Vac, 5.5A/3A, 50-60Hz, Class I
Up to 85W CPU
Note
For the full function of the system, please install both CPUs on CPU sockets.
Item Dimension (L"xW"xH")
34 x 24 x 8
Weight
47.00 LB
Warranty Information
3 Year
