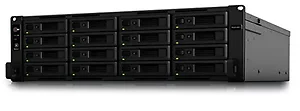

RS2818RP+ - Synology Network Attached Storage RS2818RP+ 3U 16Bay 4GB DDR4 16x2.5/3.5 inch SATA SSD/HDD (Diskless) Retail

CPU
CPU Model: Intel Atom C3538
CPU Architecture: 64-bit
CPU Frequency: Quad Core 2.1 GHz
Hardware Encryption Engine (AES-NI): Yes Memory
System Memory: 4 GB DDR4
Memory Module Pre-installed: 4GB (1 x 4GB)
Total Memory Slots: 4
Memory Expandable up to: 64 GB (16 GB x 4) Storage
Drive Bays: 16
Maximum Drive Bays with Expansion Unit: 28
Compatible Drive Type:
- 3.5" SATA HDD
- 2.5" SATA HDD
- 2.5" SATA SSD
Maximum Internal Raw Capacity: 192 TB (12 TB drive x 16) (Capacity may vary by RAID types)
Maximum Raw Capacity with Expansion Units: 336 TB (192 TB + 12 TB drive x 12) (Capacity may vary by RAID types)
Maximum Single Volume Size: 108 TB
Hot Swappable Drive: Yes External Ports
RJ-45 1GbE LAN Port: 4 (with Link Aggregation / Failover support)
USB 3.0 Port: 2
Expansion Port: 1 PCIe
PCIe Expansion: 1 x Gen3 x8 slot (black, x4 link)
Add-in-card support:
- M2D17 - Dual M.2 SSD adapter card for SSD cache
- PCIe Network Interface Card (Learn more) File System
Internal Drives:
- Btrfs
- EXT4
External Drives:
- Btrfs
- EXT4
- EXT3
- FAT
- NTFS
- HFS+
- exFAT Others
System Fan: 80 mm x 80 mm x 3 pcs
Fan Speed Mode:
- Full-Speed Mode
- Cool Mode
- Quiet Mode
Easy Replacement System Fan: Yes
Power Recovery: Yes
Noise Level: 51.0 dB(A)
Scheduled Power On/Off: Yes
Wake on LAN/WAN: Yes
Power Supply Unit / Adapter: 2 X 500W
AC Input Power Voltage: 100V to 240V AC
Power Frequency: 50/60 Hz, Single Phase
Power Consumption:
- 138.1 W (Access, for RP model)
- 66.7 W (HDD Hibernation, for RP model)
British Thermal Unit:
- 471.5 BTU/hr (Access, for RP model)
- 227.7 BTU/hr (HDD Hibernation, for RP model)
Redundant Power Supply (for xs+ and RP model): Yes Environment Temperature
Operating Temperature: 5^oC to 35^oC (40^oF to 95^oF)
Storage Temperature: -20^oC to 60^oC (-5^oF to 140^oF)
Relative Humidity: 5% to 95% RH Certification
EAC
VCCI
CCC
RCM
FCC
CE
BSMI Storage Management
Maximum Internal Volume Number: 512
Maximum iSCSI Target Number: 32
Maximum iSCSI LUN: 256
iSCSI LUN Clone/Snapshot, Windows ODX: Yes
SSD Read/Write Cache (White Paper): Yes
SSD TRIM: Yes
RAID Group: Yes
Supported RAID Type:
- Synology Hybrid RAID
- Basic
- JBOD
- RAID 0
- RAID 1
- RAID 5
- RAID 6
- RAID 10
RAID Migration:
- Basic to RAID 1
- Basic to RAID 5
- RAID 1 to RAID 5
- RAID 5 to RAID 6
Volume Expansion with Larger HDDs:
- Synology Hybrid RAID
- RAID 1
- RAID 5
- RAID 6
Volume Expansion by Adding a HDD:
- Synology Hybrid RAID
- RAID 5
- RAID 6
- JBOD
Global Hot Spare Supported RAID Type:
- Synology Hybrid RAID
- RAID 1
- RAID 5
- RAID 6
- RAID 10
File Sharing Capacity
Maximum Local User Accounts: 2048
Maximum Local Groups: 256
Maximum Shared Folder: 512
Maximum Shared Folder Sync Tasks: 8
Maximum Concurrent CIFS/AFP/FTP Connections: 1000
Windows Access Control List (ACL) Integration: Yes
NFS Kerberos Authentication: Yes
High Availability Manager: Yes
Log Center: Yes
Syslog Events per Second: 800 Virtualization
VMware vSphere 6 with VAAI: Yes
Windows Server 2012: Yes
Windows Server 2012 R2: Yes
Windows Server 2016: Yes
Citrix Ready: Yes
OpenStack: Yes
Antivirus by McAfee (Trial): Yes
Central Management System: Yes
Chat: Yes
Maximum Users: 1500 Cloud Station Server
Maximum Number of Concurrently Connected Devices: 1000
Maximum Number of Concurrently Connected Devices (with RAM expansion): 2000
Maximum Number of Synced Files (btrfs): 1,000,000 / single file reaction time 692 ms
Maximum Number of Synced Files (ext4): 1,000,000 / single file reaction time 456 ms
Document Viewer: Yes
Download Station: Yes
Maximum Concurrent Download Tasks 80 Drive
Maximum Number of Synced Files: 1,000,000 / single file reaction time 437 ms
Maximum Number of Concurrent Connections for PC Clients: 550
exFAT Access (optional): Yes MailPlus / MailPlus Server
Free Email Accounts: 5 (Licenses required for additional accounts)
Recommended MailPlus Client Number: Up to 100 (Btrfs) / 100 (EXT4)
Maximum Server Performance: 940,000 (Btrfs) / 1,016,000 (EXT4) emails per day, approx. 28.7 GB (Btrfs) / 31 GB (EXT4) Media Server
DLNA Compliance: Yes Moments
Facial recognition: Yes
Subject recognition: Yes Office
Maximum Users: 1800 Snapshot Replication
Maximum Snapshots per Shared Folder 1024
Maximum Snapshots of all Shared Folder 65536 Surveillance Station
Maximum IP cam (Licenses required) 40 (including 2 Free License) (See All Supported IP Cameras)
Total FPS (H.264):
- 1200 FPS at 720p (1280x720)
- 960 FPS at 1080p (19201080)
- 520 FPS at 3M (2048x1536)
- 320 FPS at 5M (2591x1944)
- 240 FPS at 4K (3840x2160) Total FPS (H.265):
- 1200 FPS at 720p (1280x720)
- 1200 FPS at 1080p (19201080)
- 880 FPS at 3M (2048x1536)
- 520 FPS at 5M (2591x1944)
- 400 FPS at 4K (3840x2160)
Total FPS (MJPEG):
- 560 FPS at 720p (1280x720)
- 270 FPS at 1080p (19201080)
- 190 FPS at 3M (2048x1536)
- 110 FPS at 5M (2591x1944) Video Station
Video Transcoding: Group 1 - Type 1 (See more)
Maximum Transcoding Channel Number: 1 channel, 30 FPS at 1080p(1920 x 1080), H.264 (AVC)/MPEG-4 Part 2 (XVID, DIVX5)/MPEG-2/VC-1
