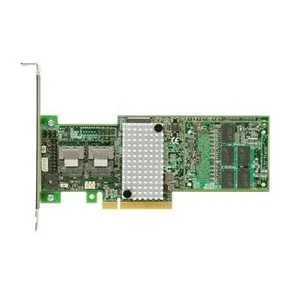

Intel RS25DB080 SAS RAID Controller RS25DB080 with 1 GB Cache

The Intel RAID Controller RS25DB080 is a high-performance second-generation card designed specifically for SAS-2 and SATA-3 interfaces. Equipped with eight internal ports, it delivers powerful processing through dual 800MHz cores and boasts a robust 1 GB of DDR3 cache memory.

Utilizing the LSI SAS2208 RAID-on-chip processor, this controller supports advanced RAID levels including 0, 1, 5, 6, 10, 50, and 60, ensuring data redundancy and performance efficiency. The controller features a low-profile form factor compatible with MD2 standards, and its PCI Express 2.0 x8 interface allows for high-speed data transfers up to 6.0 Gb/s.

For additional reliability, the Intel Smart Battery Backup Option is available (AXXRSBBU9, not included). Please note that if the Smart Battery is ordered as FD, a minimum quantity of 5 units is required.
