SKU: D3WZ0SKUKI |  Mfg. Part: RS2418+  | UPC: 846504002559  |
 3 Reviews  |     Share Make an offer

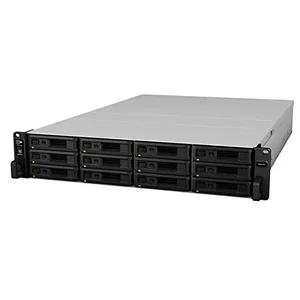

RS2418+ - Synology Network Attached Storage RS2418+ 2U 12bay NAS RackStation Diskless Retail

Special Order
Ships in 1-2 weeks
Condition: New

$1,847.60  $2,494.26
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

General InformationScalable Storage Server On-Demand RS2418+/RS2418RP+ is an ideal storage solution for small- and medium-sized businesses with great flexibility in terms of expandable storage capacity, upgradable memory, and optional high-speed NIC or M.2 SSD cache support. It serves perfectly as a centralized file server, backup target for distributed businesses, or backup target for employee workstations in a growing business. Boost your storage performance with easy-to-install add-in cards Equipped with a PCIe 3.0 slot, RS2418+ supports installing an M.2 SSD adapter card or 10GbE NIC for a high-IOPS system cache and ultra-fast data transmission. SSD SSD - Dual M.2 SATA SSD slot, compatible with 2280/2260/2242 form factors 10GbE 10GbE - 10GbE network capacity for bandwidth-intensive environments Next-generation file system for better data protection The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overhead. While ensuring high-level data integrity, it also offers flexible, efficient data protection and recovery tools. Flexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots File or folder level data restoration makes data recovery fast and flexible Automatic file self-healing detects and recovers corrupted files without user intervention Ultimate Backup Solution RS2418+ integrates various backup applications to safeguard your important data on any device with an intuitive user interface and durable storage technologies. Active Backup for Server An agentless backup solution protects data from Windows and Linux servers through SMB and Rsync to minimize deployment and management costs. Hyper Backup Comprehensively back up your data to a local shared folder, an external device, another Synology NAS, an rsync server, or a public cloud to ensure data safety. Desktop Backup Safeguard your PC with Cloud Station Backup. Effortlessly back up data stored on macOS to Synology NAS with Time Machine. Active Backup for Office 365/ G Suite Protect corporate data stored on the cloud. On-premise backup solution with a centralized dashboard. Optimize storage efficiency with single instancing and block-level deduplication technology. Fully certified storage virtualization solutions Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component. Digital asset protection Powered by Synology DiskStation Manager (DSM), Synology NAS offers advanced security measures to protect against sudden data loss and potential security holes.StorageNumber of Hard Drives Supported: 12Number of Hard Drives Installed: NoTotal Hard Drive Capacity Supported: 144 TBNumber of Solid State Drive Supported: 12Number of Solid State Drive Installed: NoProcessor & ChipsetProcessor Manufacturer: IntelProcessor Type: AtomProcessor Model: C3538Processor Core: Quad-core (4 Core)Processor Speed: 2.10 GHz

Technical Specifications

CPU
CPU Model : Intel Atom C3538
CPU Architecture : 64-bit
CPU Frequency : Quad Core 2.1 GHz
Hardware Encryption Engine (AES-NI) : Yes Memory
System Memory : 4 GB DDR4
Memory Module Pre-installed : 4GB (1 x 4GB)
Total Memory Slots : 4
Memory Expandable up to : 64 GB (16 GB x 4) Storage
Drive Bays : 12
Maximum Drive Bays with Expansion Unit : 24
Compatible Drive Type :
3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD
Maximum Internal Raw Capacity : 144 TB (12 TB drive x 12) (Capacity may vary by RAID types)
Maximum Raw Capacity with Expansion Units : 288 TB (144 TB + 12 TB drive x 12) (Capacity may vary by RAID types)
Maximum Single Volume Size : 108 TB
Hot Swappable Drive : Yes External Ports
RJ-45 1GbE LAN Port : 4 (with Link Aggregation / Failover support)
USB 3.0 Port : 2
Expansion Port : 1 PCIe
PCIe Expansion : 1 x Gen3 x8 slot (black, x4 link)
Add-in-card support :
M2D17 - Dual M.2 SSD adapter card for SSD cache
PCIe Network Interface Card File System
Internal Drives :
Btrfs
EXT4
External Drives :
Btrfs
EXT4
EXT3
FAT
NTFS
HFS+
exFAT Others
System Fan : 80 mm x 80 mm x 4 pcs
Fan Speed Mode :
Full-Speed Mode
Cool Mode
Quiet Mode
Easy Replacement System Fan :Yes
Power Recovery : Yes
Noise Level :
54 dB(A)
54.1 dB(A) (for RP model)
Scheduled Power On/Off :Yes
Wake on LAN/WAN : Yes
Power Supply Unit / Adapter :
500W
2 X 500W (for RP model)
AC Input Power Voltage: 100V to 240V AC
Power Frequency : 50/60 Hz, Single Phase
Power Consumption :
109 W (Access)
52.4 W (System Hibernation)
119.6 W (Access, for RP model)
55.9 W (System Hibernation, for RP model)
British Thermal Unit :
371.92 BTU/hr (Access)
178.8 BTU/hr (System Hibernation)
408.09 BTU/hr (Access, for RP model)
190.74 BTU/hr (System Hibernation, for RP model)
Redundant Power Supply (for xs+ and RP model) : Yes Environment Temperature
Operating Temperature: 5oC to 35oC (40oF to 95oF)
Storage Temperature : -20oC to 60oC (-5oF to 140oF)
Relative Humidity : 5% to 95% RH
Certification :
EAC
VCCI
CCC
RCM
FCC
CE
BSMI Storage Management
Maximum Internal Volume Number : 512
Maximum iSCSI Target Number :32
Maximum iSCSI LUN: 256
iSCSI LUN Clone/Snapshot, Windows ODX :Yes
SSD Read/Write Cache: Yes
SSD TRIM : Yes
RAID Group : Yes
Supported RAID Type :
Synology Hybrid RAID
Basic
JBOD
RAID 0
RAID 1
RAID 5
RAID 6
RAID 10
RAID Migration:
Basic to RAID 1
Basic to RAID 5
RAID 1 to RAID 5
RAID 5 to RAID 6
Volume Expansion with Larger HDDs :
Synology Hybrid RAID
RAID 1
RAID 5
RAID 6
Volume Expansion by Adding a HDD :
Synology Hybrid RAID
RAID 5
RAID 6
JBOD
Global Hot Spare Supported RAID Type :
Synology Hybrid RAID
RAID 1
RAID 5
RAID 6
RAID 10 File Sharing Capacity
Maximum Local User Accounts :2048
Maximum Local Groups: 256
Maximum Shared Folder :512
Maximum Shared Folder Sync Tasks :8
Maximum Concurrent CIFS/AFP/FTP Connections :1000
Windows Access Control List (ACL) Integration :Yes
NFS Kerberos Authentication :Yes
High Availability Manager : Yes
Log Center :Yes
Syslog Events per Second : 800 Virtualization
VMware vSphere 6 with VAAI :Yes
Windows Server 2012 :Yes
Windows Server 2012 R2 : Yes
Windows Server 2016: Yes
Citrix Ready: Yes
OpenStack : Yes
Antivirus by McAfee (Trial) :Yes
Central Management System:Yes
Chat:Yes
Maximum Users:1500
Cloud Station Server: Yes
Maximum Number of Concurrently Connected Devices:1000
Maximum Number of Concurrently Connected Devices (with RAM expansion) :2000
Maximum Number of Synced Files (btrfs) :1,000,000 / single file reaction time 776 ms
Maximum Number of Synced Files (ext4) :1,000,000 / single file reaction time 521 ms
Document Viewer:Yes
Download Station:Yes
Maximum Concurrent Download Tasks:80
Drive: Yes
Maximum Number of Synced Files:1,000,000 / single file reaction time 437 ms
Maximum Number of Concurrent Connections for PC Clients:550
exFAT Access (optional): Yes
MailPlus / MailPlus Server: Yes
Free Email Accounts:5
Recommended MailPlus Client Number:Up to 100 (Btrfs) / 100 (EXT4)
Maximum Server Performance: 940,000 (Btrfs) / 1,016,000 (EXT4) emails per day, approx. 28.7 GB (Btrfs) / 31 GB (EXT4)
Media Server: Yes
DLNA Compliance:Yes
Moments:Yes
Facial recognition: Yes
Subject recognition:Yes
Office: Yes
Maximum Users:1800
Snapshot Replication: Yes
Maximum Snapshots per Shared Folder:1024
Maximum Snapshots of all Shared Folder:65536
Surveillance Station: Yes
Maximum IP cam (Licenses required) :40 (including 2 Free License)
Total FPS (H.264) :
1200 FPS at 720p (1280x720) 960 FPS at 1080p (19201080)
520 FPS at 3M (2048x1536)
320 FPS at 5M (2591x1944)
240 FPS at 4K (3840x2160)
Total FPS (H.265) :
1200 FPS at 720p (1280x720)
1200 FPS at 1080p (19201080)
880 FPS at 3M (2048x1536)
520 FPS at 5M (2591x1944)
400 FPS at 4K (3840x2160) Total FPS (MJPEG) :
560 FPS at 720p (1280x720)
270 FPS at 1080p (19201080)
190 FPS at 3M (2048x1536)
110 FPS at 5M (2591x1944)
Video Station: Yes
Video Transcoding:Group 1 - Type 1
Maximum Transcoding Channel Number:1 channel, 30 FPS at 1080p(19201080), H.264 (AVC)/MPEG-4 Part 2 (XVID, DIVX5)/MPEG-2/VC-1
Virtual Machine Manager: Yes
Maximum Virtual DSM Number (Licenses required) :4 (including 1 Free License)
VPN Server: Yes
Maximum Connections:20 Environment and Packaging
Environment:RoHS Compliant
Packaging Content:
Main Unit X 1
Accessory Pack X 1
AC Power Cord X 1
AC Power Cord X 2 (for RP model)
Quick Installation Guide X 1
Optional Accessories:
Surveillance Device License Pack
D4N2133-4G DDR4 non-ECC UDIMM
RAMEC2133DDR4-16G DDR4 ECC UDIMM
Expansion Unit: RX1217/RX1217RP X 1
VS360HD
VS960HD
Synology RKS1317 - Rail Kit Sliding
Synology Ethernet Adapter E10G15-F1
Synology Ethernet Adapter E10G17-F2
Synology M2D17 M.2 SSD adapter card
Notes: Mixed usage of non-ECC and ECC UDIMMs is not supported. Item Dimension (L inchxW inchxH inch)
34 x 26 x 10

Weight
64.00 lb

Warranty Information
3 Years

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Synology
  • RS2418+
  • B07BVCZM6X
  • 846504002559
  • New
  • 29.14 lbs
  • 26 X 3 X 17
  • Apr 25, 2026
  • Feb 29, 2020
Product Identifiers: Brand: Synology • Part #: RS2418+ • UPC: 846504002559 • ASIN: B07BVCZM6X • Category: Networking
