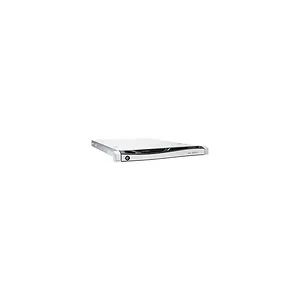

Inwin RS104-02M-S500 In-Win R-Series RS104-02M-S500 500W 1U Rackmount Server Chassis

Specifications

• Mfr Part Number: RS104-02M-S500
• Case Type: 1U Rackmount
• Material: 1.0mm SGCC
• M/B Type: ATX (12.0 x 9.6 inch), ATX (12.0 x 10.0 inch), EEB (12.0 x 13.0 inch)
• Drive Bays: 7
  • External: 4x Hot-swap 3.5", 1x Slim ODD
  • Internal: 2x 2.5" HDD
• Expansion Slots: 1x Full Height PCI Slot (via riser card and bracket)
• Backplane: 4x SATA (6Gb/s Supported) or Mini SAS HD (12G/s Supported)
• Rail Kit: 26" Ball-bearing slide rail
• Cooling System: 6x 40mm PWM Easy-swap Fan (Up to T= 56mm)
• Front Panel:
  • Front Control: Power Switch, ID Switch, System Reset, NMI
  • Indicator: Power Status, HDD, LANs, System Fail Activity LEDs
  • Ports: 2x USB 3.0 Ports
• Power Supply: Single 500W 80 PLUS Gold Certified Power Supply
• Dimensions (WxDxH): 19.00 x 24.00 x 1.75 inch / 482.6 x 625.0 x 44.4 mm (w/o Front Door)
• Chassis Only. CPU, MB, HD, memory and other parts are not included.
