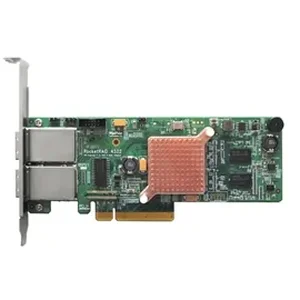

RR4522SGL - Highpoint Controller Card RR4522SGL RocketRAID 4522 8CH PCIe 2.0x8 SAS/SATA 6Gb/s RAID HBA Retail

Feature Specifications
Onboard RAID Processor
RAID-On-Chip onboard
Onboard Cache
512MB DDR 3 Cache memory with ECC protection
Optional BBU Module
Yes
Port Type
RocketRAID 4522SGL - 2x SFF-8088 (Mini-SAS)
Number of Channel / Port
8x 6Gb/s SAS/SATA Channels
Number of Devices
8x SAS /SATA Hard Drive / SSD
2x SAS LTO devices
Bus Interface
PCIe 2.0 x8
Form Factor
Low Profile
RAID Mode
0,1,5,6,10,50 and JBOD / Non-RAID Mode
Operating System
Window Server 2008 and Window 7 and later
Linux: RedHat Enterprise, Open SuSE, Fedora Core, Debian, Ubuntu
Linux Driver embedded into Kernel 3.9.4 and later
FreeBSD 8.3 and later
Driver embedded into FreeBSD 9.0 and later
Mac OS X 10.6 and later
Driver embedded into OS X 10.9 and later
Advanced RAID Feature
Configurable RAID Block Size up to 1MB
Flash ROM for Upgradeable Firmware
BIOS PnP (plug and play) and BBS (BIOS boot specification) support
Bootable RAID Array
EFI for Mac Platform
Battery Backup unit retains data when power outage occurs
NVRAM with Write Journaling enhances RAID integrity
Multiple RAID Partitions supported
Disk Format compatible: 512, 512e, 4Kn
Larger than 2 TB Drive and RAID Array support
Native Command Queuing
Multiple RAID Adapters supported
DV Mode Technology
Storage Health Inspector
Redundant RAID Configurations
Online Array Roaming
Online RAID Level Migration (ORLM)
Online Capacity Expansion (OCE)
RAID Initialization Background/Foreground/Quick
Global Hot Spare Disk support
Automatic and configurable RAID Rebuilding Priority
Spin down Massive Arrays of Idle Disks support
Staggered Drive Spin Up
Write Back and Write Through
RAID Monitoring and Management Suite
RAID Management Suites:
BIOS/Firmware configuration tool
Browser-Based management tool
CLI (Command Line Interface - scriptable configuration tool)
API package
Password Secured RAID management Suites
Enclosure Management Protocol Support: SES2 and SGPIO
(Device LEDs supported Via: SGPIO, SES-2 and LED Header)
SMTP Email Alert Notification
Alarm Buzzer
Operating Environment
Work Temp
+5^oC + 55^oC
Storage Temp
-20^oC +80^oC
Relative Humidity
5% - 60% non condensing
Operating Voltage
PCI-e: 12V/3.3V Power: 11W
MTBF (Mean Time Before Failure)
920,585 Hours
Certification Approval
FCC, CE
Kit Contents
1x RocketRAID 4522 Controller card
1x Low Profile Bracket
1x Quick Installation Guide
Item Dimension (L"xW"xH")
7 x 3 x 1

Weight
0.53 lb

Warranty Information
NA
