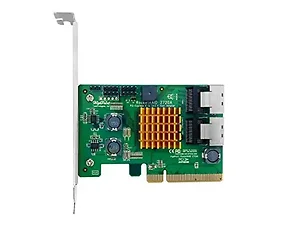

RR2720A - Highpoint PCIE 2.0 X8 8-CHANNEL 6G SATA RAID

Feature Specifications
Port Type
2x SFF-8087 (Mini-SAS) - (replacement for RocketRAID 2720SGL)
Number of Channels / Ports
8x 6Gb/s SAS/SATA Channels
Number of Devices
8x SAS /SATA Hard Drive / SSD
Bus Interface
PCIe 2.0 x8
Form Factor
Low Profile
RAID Mode
0, 1, 5, 6, 10, 50 and JBOD / non-RAID Mode
Note:
RAID 6 is not supported on macOS
Bootable RAID 6 is not supported
Operating System
Window Server 2008 and Window 7 and later
Linux
macOS 10.6 and later
Driver embedded into macOS 10.8 and later Advanced RAID Features
Flash ROM for Upgradeable BIOS
Yes
Storage Health Inspector
Yes
Redundant RAID Configurations
Yes
BIOS PnP (plug and play) and BBS (BIOS boot specification) support
Yes: RocketRAID 2720SGL
Bootable RAID Array
Yes
EFI for Mac Platform
Yes
Multiple RAID Partitions supported
Suport up to 4 RAID partition per disk
Storage Configurations Support Details
Direct Attached
Multiple RAID Adapters supported
Suport up to 4 RAID controllers per one system
Online Array Roaming
Yes
Online RAID Level Migration (ORLM)
Yes
Online Capacity Expansion (OCE)
Yes
RAID Initialization Background/Foreground/Quick
Yes
Global Hot Spare Disk support
Yes
Automatic and configurable RAID Rebuilding Priority
Yes
Disk Format compatible: 512, 512e, 4Kn
Yes
Larger than 2 TB Drive and RAID Array support
Yes
Spin down Massive Arrays of Idle Disks support
Yes
Native Command Queuing
Yes
Staggered Drive Spin Up
Yes
Write Back and Write Through
Yes RAID Monitoring and Management Suite
RAID Management Suite:
BIOS/UEFI/Firmware configuration tool
Browser-Based management tool
CLI(Command Line Interface- scriptable configuration tool)
API package
Yes
Enclosure Management Interface: SGPIO, SES-2 and I2C (Drive LEDs supported: SGPIO, SES-2 and LED Header)
Yes
except RR2711, 2722 only support via SES"
SMTP Email Alert Notification
Yes
Alarm Buzzer
Yes Operating Environment
Work Temp
+5^oC -+ 55^oC
Storage Temp
-20^oC - +80^oC
Relative Humidity
5% - 60% non condensing
Operating Voltage
PCI-e: 12V/3.3V Power: 11W
MTBF (Mean Time Before Failure)
920,585 Hours
Certification Approval
CE, FCC, RoHS, REACH, WEEE Kit Contents
1x RocketRAID 2720 Controller card
1x Low Profile Bracket
1x Quick Installation Guide Item Dimension (L"xW"xH")
7 x 8 x 2

Weight
1 lb

Warranty Information
1 Year
