Out of Stock
Condition: New
ROG HEATSINKS AXIAL-TECH FAN DESIGN
The ROG STRIX 850W Gold features an 80 Plus Gold certification for energy efficiency, IP5X-certified 135mm Axial-tech 0dB fan, ROG heatsinks and 100% Japanese capacitors. The 850-watt power supply includes a 10-year warranty, fully modular cable design, plus a magnetic logo and stickers to customize the visible side of the PSU.
Intel Specification
ATX 12V Efficiency
80Plus Gold Protection Features
OPP/OVP/SCP/OCP/OTP Hazardous Materials
ROHS AC Input Range
100-240Vac Thermal Features
ROG Thermal Solution Fan Size
135 mm DC Output Voltage
+3.3V +5V +12V -12V +5Vsb Maximum Load
20A 20A 70A 0.3A 3A Combined Load
100W 100W 840W 3.6W 15W Total Output
850W Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 6+2-pin x 6
SATA x 8
PERIPHERAL x 6 Package Contents
Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable 1000mm x 2 (1000mm)
PCI-E Cable x 3 (675mm)
SATA Cable x 2 (810mm/860mm)
Peripheral x 2 (450mm)
Join the ROG badge x 2
ROG logo magnet x 1
ROG label x 3
Note: MB/ CPU/ PCI-E cables come with embedded capacitors in the middle. Item Dimension (L inchxW inchxH inch)
13 x 8 x 5
Weight
7.67 LB
Warranty Information
10 Year Warranty

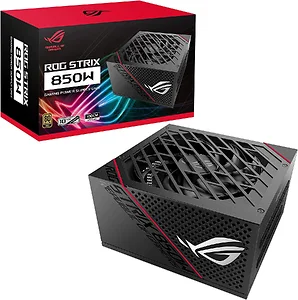

Asus ROG-STRIX-850G ROG STRIX 850W GOLD PSU
