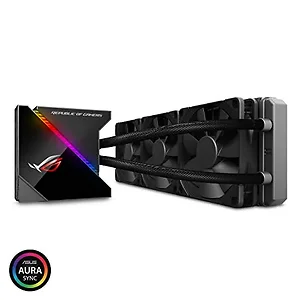

Product Overview
The ROG Ryujin series delivers optimal cooling performance in a 360mm AIO CPU cooler. Industrial-grade Noctua radiator fans optimize airflow and static pressure while FanXpert enables total software controls. Aura Sync RGB and a 1.77" OLED allow for limitless customization via LIVEDASH to pair perfectly with ASUS motherboards.
Technical Specifications
Water Block
- Block Material (CPU plate): Copper
- CPU Socket Support:
Intel: LGA 115x,1366, 2011, 2011-3, 2066
AMD: AM4, TR4Note
Radiator
Radiator Material: Aluminum
Tube: Sleeved Rubber tube
Fan
Fan: 3 x Noctua NF-F12 industrialPPC 2000 PWM
Fan size: 3 Fan Slots (120mm)
Fan Speed: 450 - 2000 RPM +/- 10 %
Fan Static Pressure: 3.94 mmH2O
Fan Air Flow: 121.8 CFM
Fan Noise: 29.7 dB(A)
Control Mode: PWM
Special Features
OLED Display: 1.77 " Full Color OLED
AURA Sync Support: Yes
Embedded FAN: Y
Embedded Fan Speed: 4800 RPM +/- 10 %
Embedded Fan Air Pressure: 3.94 mmH2O
Embedded Fan Air Flow: 19.41 CFM
Embedded Fan Noise: 31 dB(A)
Compatibility
Intel: LGA 1150, 1151, 1152, 1155, 1156, 1366, 2011, 2011-3, 2066
AMD: AM4, TR4Note
Package Content
ROG RYUJIN 360 Liquid Cooler
Accesory Pack of Scews and brackets
3 x 120mm Noctua NF-F12 iPPC 2000 PWM Fan
Thermal compound (pre-applied)
Quick Start Guide
Note
1. The mounting bracket is bundled with TR4 CPU Package, not in the RYUJINs package
2. JPG/GIF only accept 160 x 180 pixels resolution size lower than 1 MB. GIF files suggest remove transparent background and without complement frame to increase the successful rate of decoding
3. Hardware monitor and fan control is optimized for ASUS motherboards
Item Dimension(L inchxW inchxH inch)
9 x 19 x 6
Weight
12.80lb
Warranty Information
3 years
