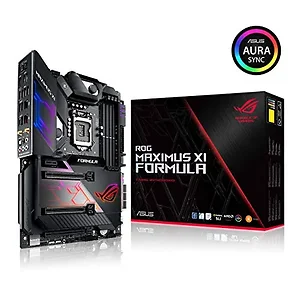

Asus ROG MAXIMUS XI FORMULA Motherboard ROG Maximus XI Formula LGA1151 DDR4 HDMI M.2 USB3.1 Gen2 WiFi ATX Retail

CPU
Intel Socket 1151 9th / 8th Gen Intel Core^TM, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0
NOTE: The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset
Build in Intel Z390
Memory
4 x DIMM, Max. 64GB, DDR4
4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/
3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
NOTE: Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Graphic
Integrated Graphics Processor- Intel UHD Graphics support
VGA output support:HDMI port
- Supports HDMI 1.4b with max. resolution 4096 x 2160 at 30 Hz / x at Hz
Multi-GPU Support
Supports NVIDIA 2-Way SLI^TM Technology
Supports AMD 3-Way CrossFireX^TM Technology
Expansion Slots
Socket 1151 for 9th / 8th Gen Intel Core^TM, Pentium Gold and Celeron processors
2 x PCIe 3.0 x16
Intel Z390 Chipset
1 x PCIe 3.0 x16 (max at x4 mode) ^Note
1 x PCIe 3.0/2.0 x1
Storage
Socket 1151 for 9th / 8th Gen Intel Core^TM, Pentium Gold and Celeron processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA and PCIE 3.0 x 4 mode)^Note2
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
Intel Optane^TM Memory Ready
LAN
Aquantia AQC111C 5G LAN
Intel I219V
Anti-surge LANGuard
ROG GameFirst V Technology
Wireless Data Network
Intel Wireless-AC 9560
Wi-Fi 802.11 b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160
Bluetooth
Bluetooth 5.0
Audio
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220
- Impedance sense for front and rear headphone outputs
- Supports:Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- ESS ES9023P
- Supports up to 32-Bit/192kHz playback ^Note3
Audio Feature :
- Optical S/PDIF out port(s) at back panel
USB Ports
Intel Z390 Chipset:BR>-1 x USB 3.1 Gen 2 front panel connector port(s)
Intel Z390 Chipset:
-4 x USB 3.1 Gen 2 port(s)
Intel Z390 Chipset:
-8 x USB 3.1 Gen 1 port(s)
Intel Z390 Chipset:
-4 x USB 2.0 port(s)
ASMedia USB 3.1 Gen 1 controller:
-2 x USB 3.1 Gen 1 port(s)
ROG Exclusive Features
ROG Armor
ReTry Button
Start Button
Extreme Engine Digi+:
- MicroFine Alloy Chokes
- 10K Black Metallic Capacitors
Extreme Tweaker
Overclocking Protection:
- ASUS C.P.R.(CPU Parameter Recall)
Crosschill EK III
ROG Patented Pre-mounted I/O Shield
ROG Exclusive Software
- Mem Tweakit
- RAMCache III
- RAMDisk
- CPU-Z
- GameFirst V
- Sonic Studio III + Sonic Studio Link
- Sonic Radar III
Special Features
5-Way Optimization by Dual Intelligent Processors 5
- 5-way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance,and Turbo app
2 " LiveDash
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
- Aura Addressable Strip Header(s)
ASUS Exclusive Features :
- USB BIOS Flashback
- MemOK II
- AI Suite 3
- Ai Charger
- Armoury Crate
- Pre-mounted I/O Shield
- ASUS NODE: hardware control interface
- OptiMem II
- ASUS EZ Flash 3
- BUPDATER
- BIOS Flashback Button
- Clear CMOS Button
- Reset Button
ASUS Q-Design :
- ASUS Q-Code
- ASUS Q-LED (CPU, VGA, Boot Device LED)
- ASUS Q-DIMM
- ASUS Q-Connector
Operating System Support
Windows 10 64-bit
Back I/O Ports
1 x HDMI
4 x USB 3.1 Gen 2
6 x USB 3.1 Gen 1 ,
1 x Optical S/PDIF out
1 x Clear CMOS button(s)
1 x USB BIOS Flashback Button(s)
1 x ASUS Wi-Fi Module
5 x Gold-plated audio jacks
Anti-surge LAN (RJ45) port
1 x AQC-111C 5G LAN port
Internal I/O Ports
2 x Aura Addressable Strip Header(s)
2 x Aura RGB Strip Headers
2 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA and PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
1 x Chassis Fan connector(s)
1 x Optional Fan connector(s)
1 x AIO_PUMP connector
1 x H_AMP fan connector
1 x W_PUMP+ connector
1 x 4-pin EATX 12 V Power connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x MemOK II switch(es)
1 x Thermal sensor connector(s)
1 x Node Connector(s)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x T_Sensor Connector
1 x W_IN header
1 x W_OUT header
1 x W_FLOW header
1 x Start button
1 x USB 3.1 Gen 2 front panel connector
2 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x Start button
1 x Reset button
1 x Q-Code
Accessories
Users manual
2 x SATA 6Gb/s cable(s)
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x Q-Connector
1 x Thermistor cable(s)
1 x ROG coaster(s)
- 1 x Thermistor cable(s)
1 x ROG weave SATA 6G cable
1 x ROG Thank you card
Item Dimension(L inchxW inchxH inch)
15 x 13 x 5
Weight
8.00lb
Warranty Information
3 years
