Technical Specifications

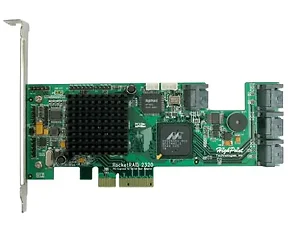

HIGHPOINT CONTROLLER CARD RAID ROCKETRAID 2320 PCI-E SATA 8 CHANNELτBIT 133MHZ
The HighPoint RocketRAID 2320 PCI Express to SATA II RAID Controller is the next generation for high performance computing solutions utilizing the latest interconnect technology PCI-Express.The RocketRAID 2320 is set to give much faster and improved I/O and supports features that are critical for high performance computing, high end workstation and enterprise storage server environments.PCI Express delivers data transfer in both directions simultaneously with its serial data transfer system and brings with it higher clock speeds.Each expansion slot in PCI Express can have several channels which gives plenty of room for expansion. Thereis also the same data rate in both directions providing the performance and scalability for the next decade.The HighPoint RocketRAID 2320 Controller offers 8 internal ports that combine high-performance storage connectivity of Serial ATA with HighPoints advanced RAID features, including, Online Capacity Expansion, Online RAID Level Migration (OCE/ORLM) and HighPoints RAID Management software.The RocketRAID 2320 supports advanced RAID levels 0, 1, 5, 10, and JBOD for maximum configuration flexibility. HighPoint offers the broadest range of support for all major operating systems to ensure OS and hardware server compatibility.Drivers are available for all major operating systems, including Windows, Linux, FreeBSD. Open source is also provided for Linux and FreeBSD. -------------------------
VENDOR: HighPoint
MPN: ROCKETRAID 2320
UPC: 643653232000
KEY FEATURES PRODUCT TYPE - SATA RAID Controller WEIGHT - 2lb BIOS SUPPORT - Yes SPARE SUPPORT - Yes PACKAGE - Retail WARRANTY -[ year RAID LEVEL SUPPORT - 0/1/5/10/JBOD SUPPORTING DEVICES - N/A NUMBER OF CABLE INCLUDED - N/A DISK FAILURE PAGING OR NOTIFICATION - N/A WINDOW BASED CONFIGURATION SUPPORT - N/A AUTOMATIC RECOVERY - N/A PROCESSOR - N/A CACHE/MEMORY INSTALLED - N/A BOOT OPTION - N/A OS SUPPORT - Windows, Windows X64 Editions, Linux(opensource), FreeBSD(opensource) DETAIL SPECIFICATIONS
Host Side Interface - PCI Express X4 (X8 slot compatible)
Device Interface - Serial ATA
Number of Channels - 8 Device Channels
Allowed Disk Connection - 8 SATA II or SATA I hard disks
Supported RAID Levels - RAID 0, 1, 5, 10, JBOD
Operating Systems Support - Windows, Windows X64 Editions, Linux(opensource), FreeBSD(opensource)
RAID Management Tool
BIOS
Browser-based RAID Management
CLI
Some Highlighted Features
Hot swap/hot spare
Single RAID Cross Adapter 64-bit
LBA support for over 2TB support
Drive activity / Failed LED
SAF-TE chassis management
SMTP support for email notification
Weight : 2.10 lbs
Warranty: 3 years
