Technical Specifications

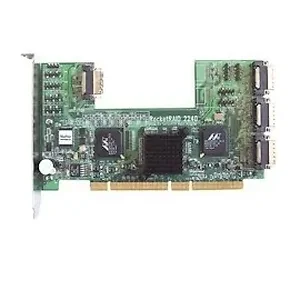

HIGHPOINT TECHNOLOGY ROCKETRAID 2240 SATAII PCI-X 16CHANNEL MULTI-LANE
The HighPoint RocketRAID 2240 RAID Controller offers a highly integrated Infiniband connectivity solution for entry-level storage servers commonly found in small to medium size business (SMB) IT environments. The RocketRAID 2240 delivers optimized performance and features through the use of HighPoints industry-leading RAID technology. The RocketRAID 2240 is the next generation in storage technology, leveraging the latest in storage performance SATA II supporting the fastest available throughput and supporting enterprise level features such as Native Command Queuing (NCQ), staggered driver spin-up and SAF-TE enclosure management support. -------------------------
VENDOR: HighPoint
MPN: ROCKETRAID 2240
UPC:
KEY FEATURES AUTOMATIC RECOVERY - N/A BIOS SUPPORT - Yes BOOT OPTION - N/A CACHE/MEMORY INSTALLED - N/A DISK FAILURE PAGING OR NOTIFICATION - Yes NUMBER OF CABLE INCLUDED - N/A OS SUPPORT - Windows, Linux and FreeBSD PACKAGE - Bulk PROCESSOR - N/A PRODUCT TYPE - SATA II RAID Controller RAID LEVEL SUPPORT - 0/1/5/10/JBOD SPARE SUPPORT - Yes SUPPORTING DEVICES - N/A WARRANTY - 3 Years WEIGHT - 2lb WEIGHT - N/A WINDOW BASED CONFIGURATION SUPPORT - N/A DETAIL SPECIFICATIONS
Host Side Interface - 64bit, 66/100/133MHz PCI-X
Disk Interface - SATA I or SATA II
Number of Channels - 4 Infiniband
Allowed Disk Connection - 4 per Infiniband channel up to 16 (SATA I or II Hard Drives)
Supported RAID Levels - RAID 0, 1, 5, 10, JBOD
Operating Systems Support - Windows, Linux and FreeBSD
RAID Management Tool
BIOS
Web based RAID
Management Software and CLI
Some Highlighted Features
Hot swap/hot spare
64bit LBA for over 4TB partition support
Up to 16 SATA I or SATA II hard drives
Drive Activity/Failed LED support
SMTP support for email notification
Weight: 2.1 lbs
Warranty: 3 years
