Product Overview

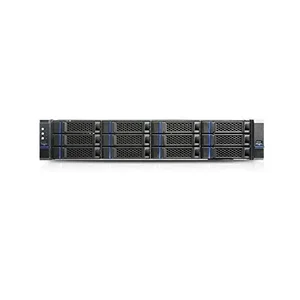

2U,12X3.5 CHASSIS W/ 12G MINI-SAS EXP BP,800W RPSU,RM238
Technical Specifications
Form Factor
2U M/B Form Factor
Extended ATX (12"x13") Drive Bays
RM23812 (3.5" Hot-swap):12
PSU Form Factor
1+1 CRPS (80+ Platinum) or 2U Single Indicators
1 x Power Status, 2 x LAN Activity, 1 x UID,1 x HDD Status, 1 x System status Front Control
Power On/Off, System Reset, UID, 1 x USB3.0 2 x USB3.0 System Security
Intrusion switch (Option) Cooling Fans
Middle: 3 x 80 mm (Up to 4), PWM (Hot-swap Non Hot-swap) Expansion Slots
7 x Low Profile or 3 x Full Height HDD Backplane
12-port 3.5" 12Gb/s Mini-SAS HD, w/Expander Front Bezel
Option Cubic Feet
3.3 Container Loading (Single Packing)
20: 200, 40: 460, 40H: 506 HDD Backplane
1 PSU Bracket
1 Bracket
1 Cover (Front)
1 Cover (Rear)
1 Fan Cage
1 Fan
3
