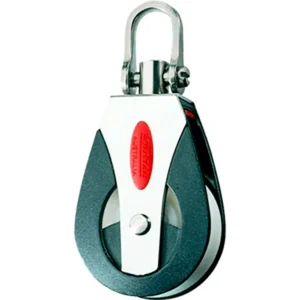

Series 40 All Purpose Block - Single - Universal HeadAll purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required.
Features:- Exceptionally high working loads
- Low maintenance, long service life
- Self-lubricating sheave
- Captive Lock™ universal head
- Slotted pin shackle eliminates fouled lines
Applications:- Mainsheet
- Halyard
- Vang
- Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8M(26')
Materials:- U.V. stabilized Acetal sheaves
- Impact and U.V. resistant, fiber reinforced Nylon cheeks
- Grade 316 stainless steel bearing race
- Grade 316 stainless steel load strap and head fitting
Specifications:Sheave Ø:40mm(1-9/16")
Max. Rope Ø:10mm(7/16")
Pin Ø: 5mm(3/16")
M.W.L.:400kg(880lbs)
B. L.:1,000kg(2,200lbs)
Weight:71g(2.5oz)
