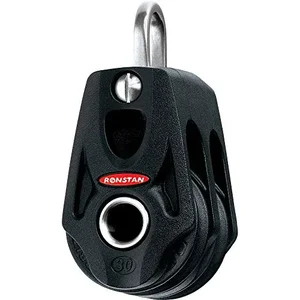

Ronstan RF35202 Series 30 Ball Bearing Orbit Block Double

Name: Ronstan RF35202 Series 30 Ball Bearing Orbit Block Double
Brand: Ronstan
SKU: C3LSKXWFC3
Price: 40.94 USD
Availability: InStock

SKU: C3LSKXWFC3 | Mfg. Part: RF35202 | UPC: 9316800404971 | 0 Reviews | Share

5 Available
Condition: New

$40.94

Need 10+? Request a volume quote

Free Shipping for this Item

Free pickup in Frisco, TX

Ready in 3–5 business days. Choose “Local Pickup” at checkout.

Product Overview

Series 30 Ball Bearing Orbit Block™ - Double

Ball Bearing Orbit Blocks™ boast the highest strength-to-weight ratio available. This is achieved through all-composite reinforced polymer materials and multiple attachment options.
Their precision design provides the optimum number of ball bearings for minimum friction while weight reduction is achieved through the use of fiber-reinforced composites in the block head, cleat arms and beckets.

Features:

Lightweight
Highest working load in its class
Secure, versatile and secure attachement
Low profile and compact

Applications:

Mainsheet systems and spinnaker sheets on dinghies to 5M(16')
Halyard, vang and backstay applications on boats to 5M(16')
Control line applications on larger yachts

Materials:

Sheave: High compression strength carbon black Acetal
Ball Bearings: High compression strength Acetal
Frame/Cheeks: Toughened, glass fiber reinforced Nylon
Link: UV stabilized, multi-strand impregnated SK75 Dyneema®

Specifications:
Sheave Ø:30mm(1-3/16")
Max. Rope Ø:8mm(5/16")
M.W.L.:450kg(990lbs)
B. L.:900kg(1,980lbs)
Weight:50g(1.7oz)

Technical Specifications

Materials
Series 30 Ball Bearing Orbit Block™ - Double	Ball Bearing Orbit Blocks™ boast the highest strength-to-weight ratio available. This is achieved through all-composite reinforced polymer materials and multiple attachment options.
Features	Lightweight
Applications	Mainsheet systems and spinnaker sheets on dinghies to 5M(16)
Sheave	High compression strength carbon black Acetal
Ball Bearings	High compression strength Acetal
Frame/Cheeks	Toughened, glass fiber reinforced Nylon
Link	UV stabilized, multi-strand impregnated SK75 Dyneema®
Specifications
Sheave Ø	30mm(1-3/16)
Max. Rope Ø	8mm(5/16)
M.W.L.	450kg(990lbs)
B. L.	900kg(1,980lbs)
Weight	50g(1.7oz)

Their precision design provides the optimum number of ball bearings for minimum friction while weight reduction is achieved through the use of fiber-reinforced composites in the block head, cleat arms and beckets.
Highest working load in its class
Secure, versatile and secure attachement
Low profile and compact
Halyard, vang and backstay applications on boats to 5M(16)
Control line applications on larger yachts
