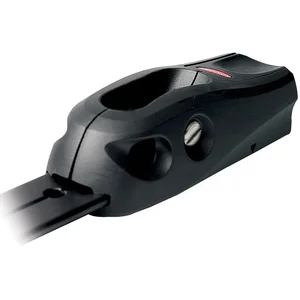

RC72504 - Ronstan Series 25 Composite Slide - 25mm (1")

Series 25 Composite Slide - 25mm (1")

Designed for small keel boats and sportsboats, the Series 25 Composite Slide offers a remarkable combination of performance and functionality in a compact package. Constructed from advanced composite materials, these slides are lightweight, resilient, and engineered for efficient manual adjustments.

Lightweight Strength

With a design philosophy rooted in modern engineering, these slides utilize high-tech polymers for their components, replacing traditional metal. This innovation results in significant reductions in weight while maintaining optimal strength and durability.

Innovative Functionality

The two-piece car body is molded from specialized composite materials that ensure low friction against the alloy track, eliminating the need for additional inserts. The integrated becket accommodates 2:1 sheet systems, and a removable threaded pin facilitates the fitting of various blocks and accessories.

Compact and Low Profile

The sleek design coupled with strategic positioning of the attachment pin facilitates a low lead aft. The plunger stop is flush with the car body, preventing snags from lines and sails, while ensuring smooth articulation through the Dyneema� Link.

Enhanced Adjustment Precision

The ergonomically designed plunger stop toggle allows for easy one-handed adjustments, simplifying operation from the cockpit. An arrow indicator on the car's side marks the stop position for consistent settings, with a stop hole spacing of 25mm (63/64") to enhance control over car positioning and sheeting angles.

Applications:

Ideal for headsail sheet leads on boats measuring up to 8M (26').

Materials:

Constructed from toughened, glass fibre reinforced Nylon.

Specifications:

Length: 102mm (4")
M.W.L: 500kg (1,100lbs)
B.L: 1,000kg (2,200lbs)
Weight: 107g (3.8oz)

The Ronstan Series 25 Composite Slide (part number RC72504) is a track component designed for small keel boats and sportsboats up to 8 meters (26 feet) in length. This slide facilitates efficient manual adjustments for headsail sheet leads. Constructed from toughened, glass fiber reinforced Nylon, it offers a lightweight yet resilient solution, weighing 107g (3.8oz) with a Maximum Working Load (M.W.L) of 500kg (1,100lbs). The two-piece composite car body is engineered for low friction on alloy tracks. Key features include an integrated becket for 2:1 sheet systems and a removable threaded pin for attaching various blocks and accessories. Its compact, low-profile design helps prevent snags, while the ergonomically designed plunger stop toggle and arrow indicator provide precise, one-handed adjustments with a 25mm stop hole spacing. This product addresses the need for durable, lightweight, and easily adjustable sheet lead systems on smaller vessels.
