Technical Specifications

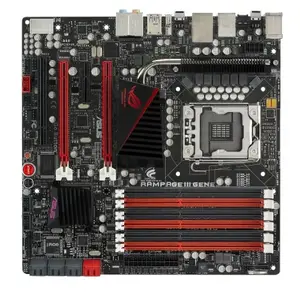

ASUS MOTHERBOARD RAMPAGE III GENE INTEL CORE I7 X58 LGA1366 DDR3 PCI EXPRESS 2 SATA3 USB3 ATX RETAIL
LGA1366 Intel® Core™ i7 Ready This motherboard supports the latest Intel® Core™ i7 processors in LGA1366 package with integrated memory controller to support 3-channel (6 DIMMs) DDR3 memory. Supports Intel® QuickPath Interconnect (QPI) with a system bus of up to 6.4 GT/s and a max bandwidth of up to 25.6 GB/s. Intel® Core™ i7 processor is one of the most powerful and energy efficient CPUs in the world.
Intel® X58 Chipset The Intel® X58 Express Chipset is one of the most powerful chipset designed to support the Intel® Core™ i7 Processors with LGA1366 package and Intel® next generation system interconnect interface, Intel® QuickPath Interconnect (QPI), providing improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. It also supports up to 36 PCI Express 2.0 lanes providing better graphics performance.
True USB 3.0 Support Experience ultra-fast data transfers at 4.8Gbps with USB 3.0—the latest connectivity standard. Built to connect easily with next generation components and peripherals, USB 3.0 transfers data 10X faster and is also backward compatible with USB 2.0 components.
LGA1366 socket for Intel® Core™i7 Processor Extreme Edition / Core™i7 Processor
Intel® X58/ICH10R
Intel Gigabit LAN / USB3.0 / SATA 6Gb/s support
ROG Connect – Plug and overclock. Tweak it the hardcore way!
GameFirst – The speed you need to pwn
SupremeFX X-Fi 2 Built-in – Play with ultra-real cinematic in-game surround sound!
-------------------------
VENDOR: ASUS TeK
MPN: RAMPAGE III GENE
UPC: 610839176793
DETAIL SPECIFICATIONS
CPU Intel Socket 1366 Core i7 Processor Extreme Edition/Core i7 Processor Support Intel Turbo Boost Technology Refer to www.asus.com for Intel CPU support list
CHIPSET Intel X58 / ICH10R
SYSTEM BUS Up to 6400 MT/s with QuickPath Interconnection
MEMORY` x DIMM, Max. 24 GB, DDR3𖠨(O.C.)/2133(O.C.)/2000(O.C.)/1800(O.C.)/1600/1333/1066 Non-ECC,Un-buffered Memory Triple channel memory architecture Supports Intel Extreme Memory Profile (XMP) Hyper DIMM support is subject to the physical characteristics of individual CPUs. Refer to www.asus.com or this user manual for the Memory QVL (Qualified Vendors Lidts).
EXPANSION SLOTS\ x PCIe 2.0 x16 (dual x16 mode)[ x PCIe x4[ x PCI 2.2
MULTI-GPU SUPPORT Support NVIDIA SLI / ATI CrossFireX Technology
STORAGE Intel ICH10R controller` xSATA 3.0 Gb/s ports (gray) Intel Matrix Storage Technology Support RAID 0,1,5,10 Marvell 9128 PCIe SATA6Gb/s controller\ xSATA 6.0 Gb/s ports (red)
LAN Intel Gigabit LAN
AUDIO SupremeFX X-Fi 2 Built-in - 8-channel High Definition Audio CODEC - EAX Advanced HD 5.0 - THX TrueStudio PC - X-Fi Xtreme Fidelity - Creative ALchemy -Supports Blu-ray audio layer content protection - Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports 1 x Optical S/PDIF out port at back panel
IEEE 1394\ x 1394a port(s) (1 port at back panel, 1 port at midboard)
USB NEC USB 3.0 controller - 2 x USB 3.0/2.0 ports (at back panel) Intel ICH10R Southbridge - 11 x USB 2.0/1.1 ports (4 ports at midboard 6 ports at back panel,1 reserved for ROG Connect)
ASUS UNIQUE FEATURES Power Design: - 8-phase CPU power - 2-phase QPI/DRAM power - 2-phase NB power ROG Connect ProbeIt iROG GameFirst CPU Level Up MemOK Extreme Tweaker Q-Fan Plus (without thermal sensor cables) Loadline Calibration Intelligent Overclocking Tools: - ASUS TurboV EVO - O.C Profile Overclocking Protection: - COP EX (Component Overheat Protection - EX) - Voltiminder LED - ASUS C.P.R.(CPU Parameter Recall)
SPECIAL FEATURES ASUS MyLogo3 ASUS Fan Xpert ASUS EZ Flash 2 ASUS CrashFree BIOS 3 ASUS Q-Connector ASUS Q-Slot ASUS Q-DIMM
BACK PANEL I/O PORTS[ x PS/2 Keyboard[ x S/PDIF Out (Optical) [ x IEEE 1394a [ x LAN(RJ45) port b -Channel Audio I/O[ x Clr CMOS switch[ x ROG Connect On/Off switch\ x USB 3.0/2.0 ports (Blue)a x USB 2.0/1.1 ports (1 port also for ROG Connect)
INTERNAL I/O CONNECTORS\ x USB 2.0 connectors support additional 4 USB 2.0 portsb x SATA connectors: 2 x SATA 6G connectors (Red) 6 x standard SATA connectors (Gray)_ x Fan connectors: 1 x CPU / 1 x PWR / 2 x Chassis / 1 x Optionalb x ProbeIt Measurement Points[ x Go Button[ x Thermal sensor connector[ x IEEE1394a connector [ x SPDIF_Out Connector[ x 24-pin ATX Power connector[ x 8-pin ATX 12V Power connectors[ x En/Dis-able Clr CMOS header[ x En/Dis-able QPI_LL header[ x START (Power On) button[ x RESET button[ x Front panel audio connector[ x System panel connector
BIOSΔ Mb Flash ROM PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI2.0a Multi-Language BIOS
MANAGEABILITY WOL by PME,WOR by PME,PXE
ACCESSORIES[ x ROG Connect cable[ x SLI Cable[ x 2 in 1 ASUS Q-Connector Kit] x 2-in-1 SATA signal cables[ x 2-in-1 SATA 6G cables[ x I/O Shield[ x Cable Ties Pack[ x 12-in-1 ROG Cable Label[ x ROG theme label[ x Users Manual
SUPPORT DISC Support DVD: - Drivers and Applications Sound Blaster X-Fi MB2 Utility Kaspersky Anti-Virus ROG GameFirst Utility ASUS AI Suite II ASUS PC Probe II ASUS Update
FORM FACTOR uATX Form Factorc.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
WEIGHT\.43
WARRANTY] Years
